Technical Specifications
Parameters and characteristics for this part
| Specification | 183-015-113R561 |
|---|---|
| Backset Spacing | 0.59 in |
| Backset Spacing | 14.99 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Mating Side, Female Screwlock, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 15 |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 C |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Termination | Connector Style | Current Rating (Amps) | Shell Size, Connector Layout | Mounting Type | Number of Rows [custom] | Features | Contact Finish Thickness | Backset Spacing | Backset Spacing | Shell Material, Finish | Flange Feature | Connector Type | Number of Positions | Material Flammability Rating | Contact Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Board Lock Grounding Indents | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Plug Male Pins | 15 | UL94 V-0 | Gold | |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Ground Strap Grounding Indents | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | Housing/Shell | Plug Male Pins | 15 | UL94 V-0 | Gold | 4-40 |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Grounding Indents | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Plug Male Pins | 15 | UL94 V-0 | Gold | |
NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | ||
 NorComp Inc. | Polyester Glass Filled | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Board Lock | Flash | 0.59 in | 14.99 mm | Housing/Shell | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | 4-40 | ||
NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | Housing/Shell | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | 4-40 | |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Ground Strap | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Board Lock | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | Housing/Shell | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | 4-40 |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Ground Strap | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | Housing/Shell | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | 4-40 |
NorComp Inc. | Polyester Glass Filled | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Board Lock Grounding Indents | Flash | 0.59 in | 14.99 mm | 4-40 Mating Side Female Screwlock | Plug Male Pins | 15 | UL94 V-0 | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
183-015 Series

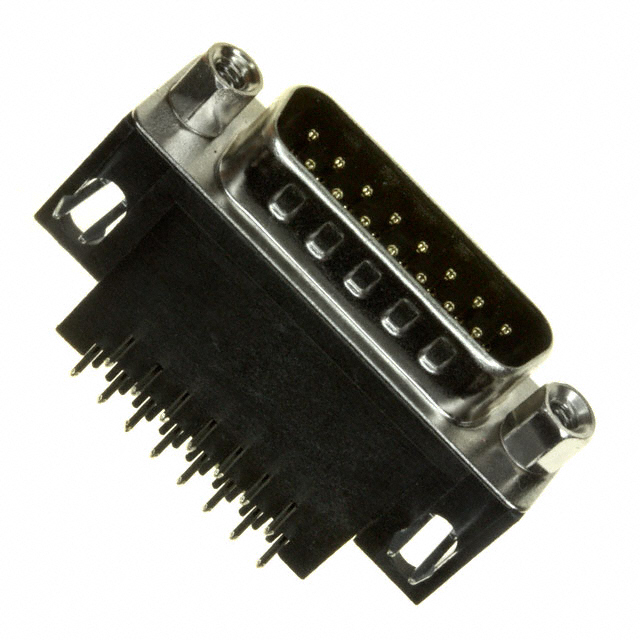

15 Position D-Sub Plug, Male Pins Connector
