183-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K

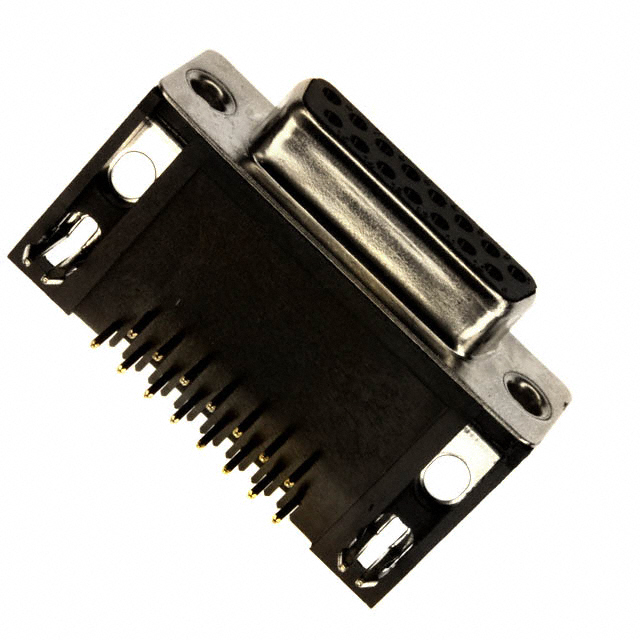

CONN D-SUB PLUG 15POS R/A SLDR
| Part | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Termination | Connector Style | Current Rating (Amps) | Shell Size, Connector Layout | Mounting Type | Number of Rows [custom] | Features | Contact Finish Thickness | Backset Spacing | Backset Spacing | Shell Material, Finish | Flange Feature | Connector Type | Number of Positions | Material Flammability Rating | Contact Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Board Lock Grounding Indents | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Plug Male Pins | 15 | UL94 V-0 | Gold | |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Ground Strap Grounding Indents | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | Housing/Shell | Plug Male Pins | 15 | UL94 V-0 | Gold | 4-40 |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Grounding Indents | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Plug Male Pins | 15 | UL94 V-0 | Gold | |
NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | ||
 NorComp Inc. | Polyester Glass Filled | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Board Lock | Flash | 0.59 in | 14.99 mm | Housing/Shell | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | 4-40 | ||
NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | Housing/Shell | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | 4-40 | |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Ground Strap | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Board Lock | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | Housing/Shell | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | 4-40 |
 NorComp Inc. | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Ground Strap | Flash | 0.59 in | 14.99 mm | Nickel Plated Steel | Housing/Shell | Receptacle Female Sockets | 15 | UL94 V-0 | Gold | 4-40 |
NorComp Inc. | Polyester Glass Filled | -55 C | 105 ░C | Black | Signal | Solder | D-Sub | 5 A | 2 | Panel Mount Right Angle Through Hole | 2 | Board Lock Grounding Indents | Flash | 0.59 in | 14.99 mm | 4-40 Mating Side Female Screwlock | Plug Male Pins | 15 | UL94 V-0 | Gold |
