Inductors, Coils, Chokes

28153C

Obsolete

Murata Electronics

FIXED IND 15UH 4.77A 28MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Magnetics Selection Guide

Inductors, Coils, Chokes

28153C

Obsolete

Murata Electronics

FIXED IND 15UH 4.77A 28MOHM SMD

Deep-Dive with AI

DocumentsPower Magnetics Selection Guide

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	28153C

Current Rating (Amps)	4.77 A
DC Resistance (DCR)	28 mOhm
Frequency - Self Resonant	17.8 MHz
Height - Seated (Max) [Max] [z]	0.299 in
Height - Seated (Max) [Max] [z]	7.6 mm
Inductance	15 µH
Inductance Frequency - Test	10 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Package / Case	Nonstandard
Q @ Freq [custom]	1 MHz
Q @ Freq [custom]	31
Shielding	Unshielded
Type	Wirewound

28 Series

Part	Mounting Type	Inductance Frequency - Test	Current Rating (Amps)	Package / Case	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	DC Resistance (DCR)	Type	Q @ Freq	DC Resistance (DCR) [Max]
Murata Electronics 28332C	Surface Mount	10 kHz	9.3 A	Nonstandard	Unshielded	34.6	1 MHz	0.299 in	7.6 mm	3.3 µH	125 °C	-40 C	42 MHz	7.5 mOhm	Wirewound

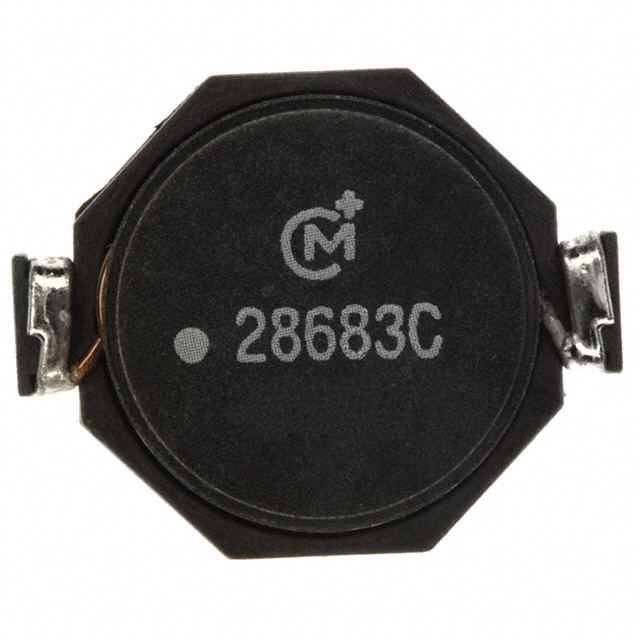

Murata Electronics 28683C	Surface Mount	1 MHz	2.16 A	Nonstandard	Unshielded			0.299 in	7.6 mm	68 µH	125 °C	-40 C	8.6 MHz	122 mOhm	Wirewound	33.9
Murata Electronics 28223C	Surface Mount	10 kHz	3.85 A	Nonstandard	Unshielded			0.299 in	7.6 mm	22 µH	125 °C	-40 C	14.4 MHz		Wirewound	43.5	42 mOhm
Murata Electronics 28474C	Surface Mount	800 kHz	780 mA	Nonstandard	Unshielded			0.299 in	7.6 mm	470 µH	125 °C	-40 C	4.3 MHz	816 mOhm	Wirewound	31.7 800 kHz
Murata Electronics 28152C	Surface Mount	10 kHz	12.5 Amps	Nonstandard	Unshielded	43.9	1 MHz	0.299 in	7.6 mm	1.5 µH	125 °C	-40 C	72 MHz		Wirewound		3.6 mOhm
Murata Electronics 28334C	Surface Mount	10 kHz	950 mA	Nonstandard	Unshielded			0.299 in	7.6 mm	330 µH	125 °C	-40 C	5 MHz		Wirewound	30.8 800 kHz	575 mOhm
Murata Electronics 28103C	Surface Mount	10 kHz	5.9 A	Nonstandard	Unshielded			0.299 in	7.6 mm	10 µH	125 °C	-40 C	22.5 MHz		Wirewound	1 MHz 31.1	18 mOhm
Murata Electronics 28153C	Surface Mount	10 kHz	4.77 A	Nonstandard	Unshielded	31	1 MHz	0.299 in	7.6 mm	15 µH	125 °C	-40 C	17.8 MHz	28 mOhm	Wirewound
Murata Electronics 28335C	Surface Mount	10 kHz	0.29 A	Nonstandard	Unshielded			0.299 in	7.6 mm	3300 µH	125 °C	-40 C			Wirewound	12.8 800 kHz	5.76 Ohm
Murata Electronics 28472C	Surface Mount	1 MHz	8.3 Amps	Nonstandard	Unshielded	33.3	1 MHz	0.299 in	7.6 mm	4.7 ÁH	125 °C	-40 C	37 MHz		Wirewound		10 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 1.17

Description

General part information

28 Series

15 µH Unshielded Wirewound Inductor 4.77 A 28mOhm Max Nonstandard

Documents

Technical documentation and resources

Power Magnetics Selection Guide

Datasheet
