28 Series

Catalog

FIXED IND 3.3UH 9.3A 7.5MOHM SMD

Part	Mounting Type	Inductance Frequency - Test	Current Rating (Amps)	Package / Case	Shielding	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	DC Resistance (DCR)	Type	Q @ Freq	DC Resistance (DCR) [Max]
Murata Electronics 28332C	Surface Mount	10 kHz	9.3 A	Nonstandard	Unshielded	34.6	1 MHz	0.299 in	7.6 mm	3.3 µH	125 °C	-40 C	42 MHz	7.5 mOhm	Wirewound
Murata Electronics 28683C	Surface Mount	1 MHz	2.16 A	Nonstandard	Unshielded			0.299 in	7.6 mm	68 µH	125 °C	-40 C	8.6 MHz	122 mOhm	Wirewound	33.9
Murata Electronics 28223C	Surface Mount	10 kHz	3.85 A	Nonstandard	Unshielded			0.299 in	7.6 mm	22 µH	125 °C	-40 C	14.4 MHz		Wirewound	43.5	42 mOhm

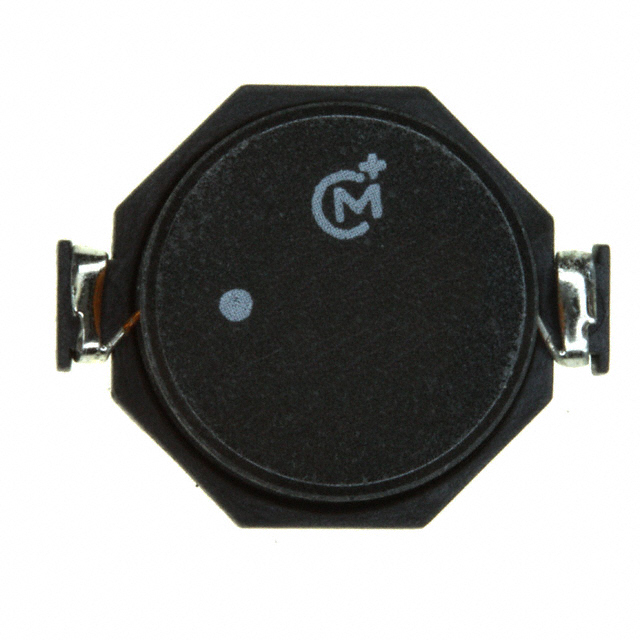

Murata Electronics 28474C	Surface Mount	800 kHz	780 mA	Nonstandard	Unshielded			0.299 in	7.6 mm	470 µH	125 °C	-40 C	4.3 MHz	816 mOhm	Wirewound	31.7 800 kHz
Murata Electronics 28152C	Surface Mount	10 kHz	12.5 Amps	Nonstandard	Unshielded	43.9	1 MHz	0.299 in	7.6 mm	1.5 µH	125 °C	-40 C	72 MHz		Wirewound		3.6 mOhm
Murata Electronics 28334C	Surface Mount	10 kHz	950 mA	Nonstandard	Unshielded			0.299 in	7.6 mm	330 µH	125 °C	-40 C	5 MHz		Wirewound	30.8 800 kHz	575 mOhm

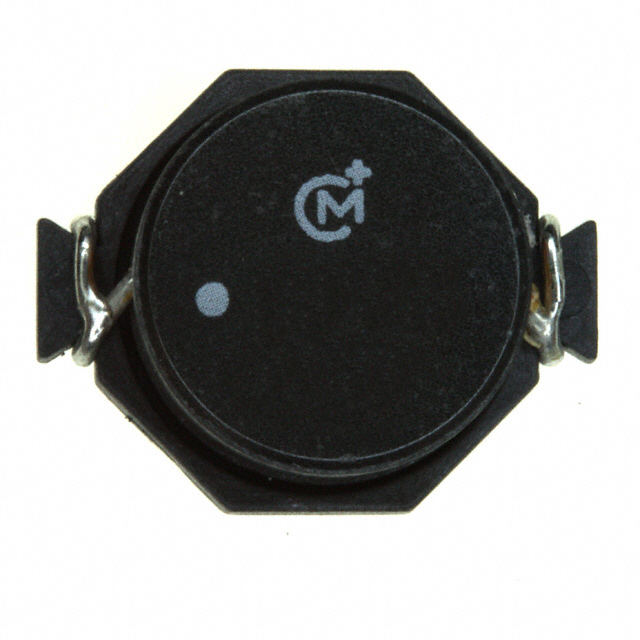

Murata Electronics 28103C	Surface Mount	10 kHz	5.9 A	Nonstandard	Unshielded			0.299 in	7.6 mm	10 µH	125 °C	-40 C	22.5 MHz		Wirewound	1 MHz 31.1	18 mOhm
Murata Electronics 28153C	Surface Mount	10 kHz	4.77 A	Nonstandard	Unshielded	31	1 MHz	0.299 in	7.6 mm	15 µH	125 °C	-40 C	17.8 MHz	28 mOhm	Wirewound
Murata Electronics 28335C	Surface Mount	10 kHz	0.29 A	Nonstandard	Unshielded			0.299 in	7.6 mm	3300 µH	125 °C	-40 C			Wirewound	12.8 800 kHz	5.76 Ohm

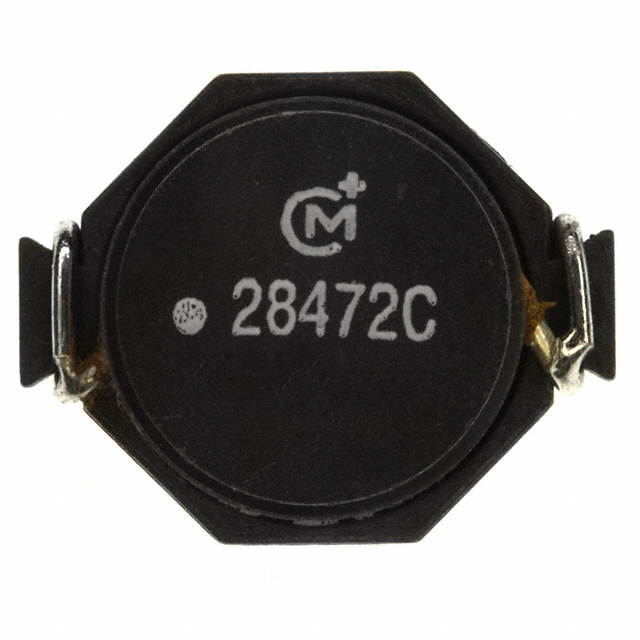

Murata Electronics 28472C	Surface Mount	1 MHz	8.3 Amps	Nonstandard	Unshielded	33.3	1 MHz	0.299 in	7.6 mm	4.7 ÁH	125 °C	-40 C	37 MHz		Wirewound		10 mOhm
