Motors, Actuators, Solenoids and Drivers

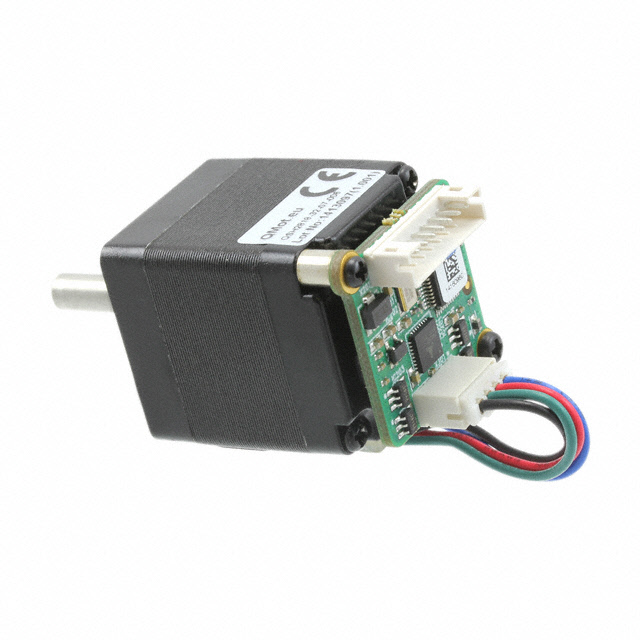

PD28-1-1021-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PD28-1-1021-TMCL |
|---|---|
| Coil Type | Bipolar |
| Current Rating (Amps) | 700 mA |
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Features | Flatted Shaft, Integrated Controller |
| Length - Shaft and Bearing [x] | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in |
| Mounting Hole Spacing | 23 mm |
| Mounting Hole Spacing | 0.906 in |
| NEMA Frame Size | 11 |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [y] | 1.1 in |
| Size / Dimension [y] | 28 mm |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Torque - Holding (oz-in / mNm) | 8.49 oz-in |
| Torque - Holding (oz-in / mNm) | 60 mNm |
| Type | Hybrid |
| Voltage - Rated | 24 VDC |
| Weight | 109.77 g |
| Weight | 0.242 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 192.75 | |
| 5 | $ 188.40 | |||
| 10 | $ 184.78 | |||
| 25 | $ 181.16 | |||
Description
General part information
PD28 Series
Bipolar Stepper Motor Hybrid Frame Size 11 200.0 Step 700 mA 24VDC
