Connectors, Interconnects
M80-4102001
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MOUNT,PLUG,20 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-4102001 |
|---|---|
| Applications | Automotive, Military, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 12 Áin |
| Contact Finish Thickness - Mating | 0.3 Ám |
| Contact Finish Thickness - Post | 3.5 Ám |
| Contact Finish Thickness - Post | 137.8 Áin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Features | Mating Flange, Polarizing Key |
| Insulation Color | Black |
| Insulation Height | 5.2 mm |
| Insulation Height | 0.205 " |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.3 mm, 7.55 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pitch - Mating | 0.079 " |
| Pitch - Mating | 2 mm |
| Row Spacing - Mating | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Style | Cable, Board to Board |
| Termination | Solder |
| Voltage Rating | 120 VDC |
| Part | Contact Shape | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Material | Mated Stacking Heights | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Connector Type | Number of Positions Loaded | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Style | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Type | Voltage Rating | Termination | Number of Rows [custom] | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Material Flammability Rating | Contact Finish - Post | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Circular | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Automotive General Purpose Military | Beryllium Copper | 7.3 mm 7.55 mm | 2 mm | 0.079 in | 12 Áin | 0.3 Ám | Mating Flange Polarizing Key | Receptacle | All | 50 | -55 C | 125 °C | Board to Board Cable | 5.2 mm | 0.205 " | 0.118 in | 3 mm | Through Hole | Female Socket | 120 VDC | Solder | 2 | Black | 0.079 " | 2 mm | Gold | UL94 V-0 | Tin | |
 Harwin Inc. | Circular | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Automotive General Purpose Military | Beryllium Copper | 7.3 mm 7.55 mm | 2 mm | 0.079 in | 12 Áin | 0.3 Ám | Mating Flange Polarizing Key | Receptacle | All | 42 | -55 C | 125 °C | Board to Board Cable | 5.2 mm | 0.205 " | 0.118 in | 3 mm | Through Hole | Female Socket | 120 VDC | Solder | 2 | Black | 0.079 " | 2 mm | Gold | UL94 V-0 | Tin | |
Harwin Inc. | Circular | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Automotive General Purpose Military | Beryllium Copper | 7.3 mm 7.55 mm | 2 mm | 0.079 in | 12 Áin | 0.3 Ám | Mating Flange Polarizing Key | Receptacle | All | 20 | -55 C | 125 °C | Board to Board Cable | 5.2 mm | 0.205 " | 0.118 in | 3 mm | Through Hole | Female Socket | 120 VDC | Solder | 2 | Black | 0.079 " | 2 mm | Gold | UL94 V-0 | Tin-Lead | |
 Harwin Inc. | Circular | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Automotive General Purpose Military | Beryllium Copper | 7.3 mm 7.55 mm | 2 mm | 0.079 in | 12 Áin | 0.3 Ám | Mating Flange Polarizing Key | Receptacle | All | -55 C | 125 °C | Board to Board Cable | 5.2 mm | 0.205 " | 0.118 in | 3 mm | Through Hole | Female Socket | 120 VDC | Solder | 2 | Black | 0.079 " | 2 mm | Gold | UL94 V-0 | Tin | 34 | |
 Harwin Inc. | Circular | Polyphenylene Sulfide (PPS) Glass Filled | 0.25 çm | 10 Áin | Automotive General Purpose Military | Beryllium Copper | 7.3 mm 7.55 mm | 2 mm | 0.079 in | 12 Áin | 0.3 Ám | Mating Flange Polarizing Key | Receptacle | All | 10 | -55 C | 125 °C | Board to Board Cable | 5.2 mm | 0.205 " | 0.118 in | 3 mm | Through Hole | Female Socket | 120 VDC | Solder | 2 | Black | 0.079 " | 2 mm | Gold | UL94 V-0 | Gold | |
Harwin Inc. | Circular | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Automotive General Purpose Military | Beryllium Copper | 7.3 mm 7.55 mm | 2 mm | 0.079 in | 12 Áin | 0.3 Ám | Mating Flange Polarizing Key | Receptacle | All | 6 | -55 C | 125 °C | Board to Board Cable | 5.2 mm | 0.205 " | 0.118 in | 3 mm | Through Hole | Female Socket | 120 VDC | Solder | 2 | Black | 0.079 " | 2 mm | Gold | UL94 V-0 | Tin | |
 Harwin Inc. | Circular | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Automotive General Purpose Military | Beryllium Copper | 7.3 mm 7.55 mm | 2 mm | 0.079 in | 12 Áin | 0.3 Ám | Mating Flange Polarizing Key | Receptacle | All | 10 | -55 C | 125 °C | Board to Board Cable | 5.2 mm | 0.205 " | 0.118 in | 3 mm | Through Hole | Female Socket | 120 VDC | Solder | 2 | Black | 0.079 " | 2 mm | Gold | UL94 V-0 | Tin | |
Harwin Inc. | Circular | Polyphenylene Sulfide (PPS) Glass Filled | 3.5 Ám | 137.8 Áin | Automotive General Purpose Military | Beryllium Copper | 7.3 mm 7.55 mm | 2 mm | 0.079 in | 12 Áin | 0.3 Ám | Mating Flange Polarizing Key | Receptacle | All | -55 C | 125 °C | Board to Board Cable | 5.2 mm | 0.205 " | 0.118 in | 3 mm | Through Hole | Female Socket | 120 VDC | Solder | 2 | Black | 0.079 " | 2 mm | Gold | UL94 V-0 | Tin-Lead | 34 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-410 Series

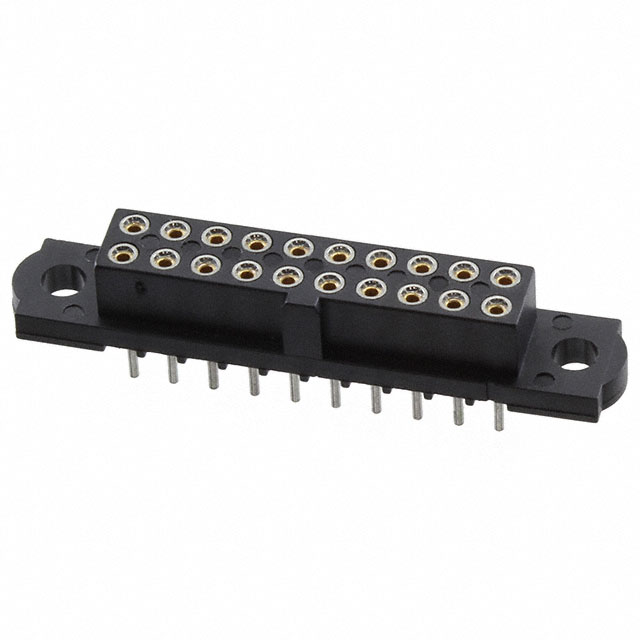

20 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
