Connectors, Interconnects
M80-4103442
ActiveHarwin Inc.

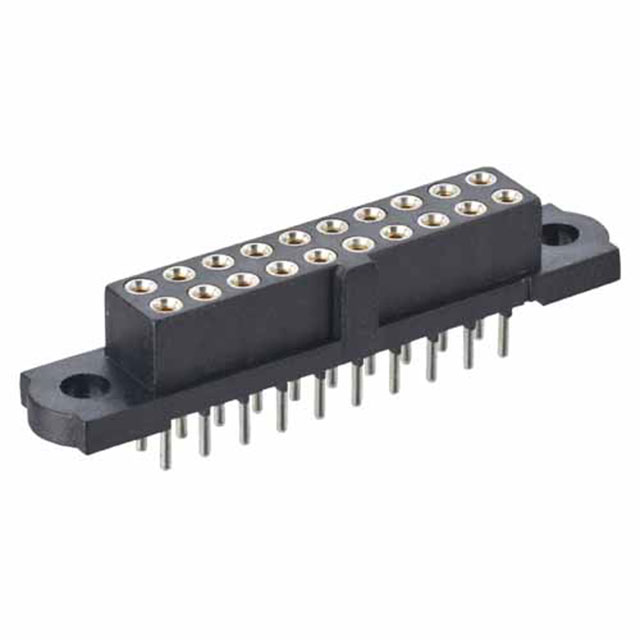

HEADER CONNECTOR,PCB MOUNT,PLUG,34 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
M80-4103442
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MOUNT,PLUG,34 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-4103442 |
|---|---|
| Applications | Automotive, Military, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 12 Áin |
| Contact Finish Thickness - Mating | 0.3 Ám |
| Contact Finish Thickness - Post | 3.5 Ám |
| Contact Finish Thickness - Post | 137.8 Áin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Features | Mating Flange, Polarizing Key |
| Insulation Color | Black |
| Insulation Height | 5.2 mm |
| Insulation Height | 0.205 " |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.3 mm, 7.55 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 34 |
| Number of Positions Loaded | All |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pitch - Mating | 0.079 " |
| Pitch - Mating | 2 mm |
| Row Spacing - Mating | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Style | Cable, Board to Board |
| Termination | Solder |
| Voltage Rating | 120 VDC |
