Specification	19200160546

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Size	16 A
Size / Dimension [x]	3.118 in
Size / Dimension [x]	79.2 mm
Size / Dimension [y]	1.417 "
Size / Dimension [y]	36 mm
Size / Dimension [z]	70.2 mm
Size / Dimension [z]	2.764 in
Style	Side Entry
Thread Size	M25

19200160 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Lock Location	Features	Size	Housing Color	Housing Finish	Ingress Protection	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Thread Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
HARTING 19200160290	125 °C	-40 C	Base - Box Mount	Side Entry	Locking Clip (1) on Base Bottom	Feed Through	16 A	Gray	Powder Coated	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	3.74 "	95 mm	57 mm	2.244 in	1.969 "	50 mm	M20
HARTING 19200160546	125 °C	-40 C	Hood	Side Entry	Locking Clip (1) on Base Bottom		16 A	Gray	Powder Coated	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	79.2 mm			70.2 mm	36 mm		M25	1.417 "	3.118 in	2.764 in
HARTING 19200160495

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

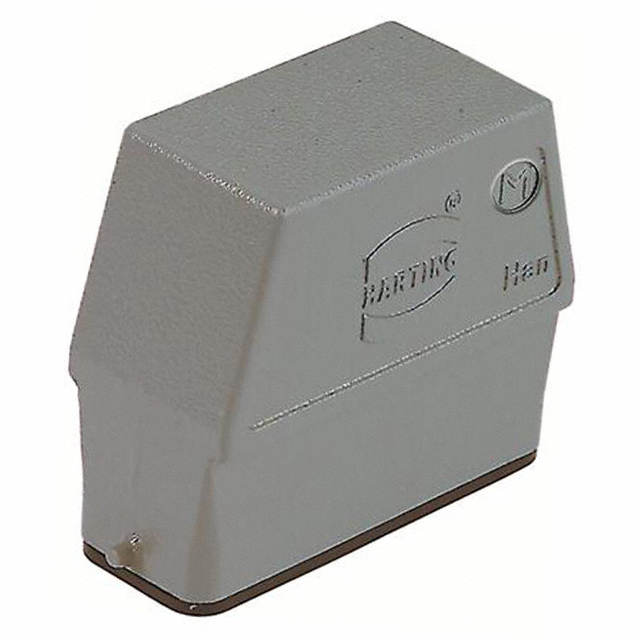

Hood Connector Side Entry M25 16A IP65 - Dust Tight, Water Resistant
