19200160 Series
Manufacturer: HARTING
Beta
⌘K

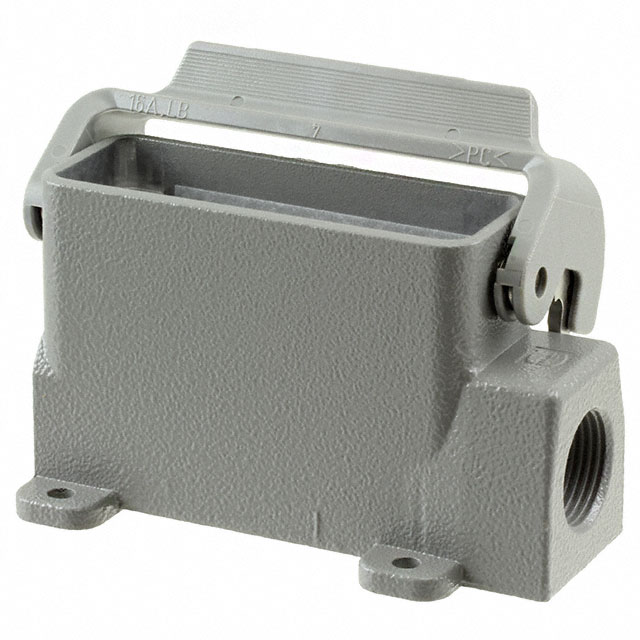

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 16A
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Style | Lock Location | Features | Size | Housing Color | Housing Finish | Ingress Protection | Housing Material | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Thread Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 125 °C | -40 C | Base - Box Mount | Side Entry | Locking Clip (1) on Base Bottom | Feed Through | 16 A | Gray | Powder Coated | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | 3.74 " | 95 mm | 57 mm | 2.244 in | 1.969 " | 50 mm | M20 | |||
 HARTING | 125 °C | -40 C | Hood | Side Entry | Locking Clip (1) on Base Bottom | 16 A | Gray | Powder Coated | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | 79.2 mm | 70.2 mm | 36 mm | M25 | 1.417 " | 3.118 in | 2.764 in | ||||
 HARTING |
