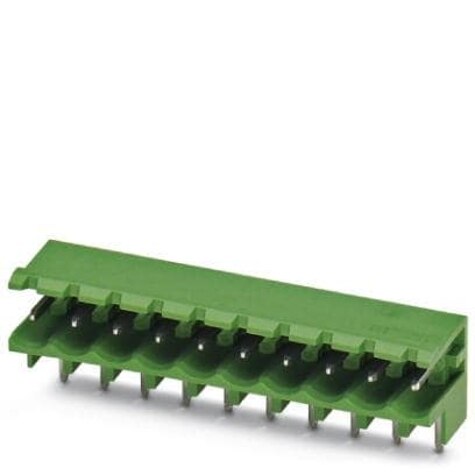

PLUGGABLE TERMINAL BLOCKS 20 POS 5.08MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

Connectors, Interconnects

1735701

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 20 POS 5.08MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1735701

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Contact Tail Length	3.5 mm
Current - IEC	12 A
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height [z]	0.49 in
Insulation Height [z]	12.44 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	20
Pitch	5.08 mm
Pitch	0.2 in
Positions Per Level	20
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

MSTBW Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Through Hole Header

Part	Contact Mating Finish	Positions Per Level [custom]	Voltage - UL	Number of Positions	Header Orientation	Pitch	Pitch	Color	Number of Levels	Termination Style	Mounting Type	Current - IEC	Type	Voltage - IEC	Housing Material	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Tail Length	Contact Tail Length	Positions Per Level
Phoenix Contact 1735837	Tin	7	300 V	7	90° Right Angle	5.08 mm	0.2 in	Green	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	400 V
Phoenix Contact 1735769	Tin		300 V	14	90° Right Angle	5.08 mm	0.2 in	Green	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	400 V	Polybutylene Terephthalate (PBT)	UL94 V-0	0.49 in	12.44 mm	0.138 in	3.5 mm	14
Phoenix Contact 1736111	Tin		300 V	2	90° Right Angle	5 mm	0.197 in	Green	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	400 V	Polybutylene Terephthalate (PBT)	UL94 V-0	0.49 in	12.44 mm	0.138 in	3.5 mm	2
Phoenix Contact 1736030	Tin		300 V	10	90° Right Angle	5 mm	0.197 in	Green	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	400 V							10
Phoenix Contact 1965672	Tin				90° Right Angle	5 mm	0.197 in	Blue	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	250 V			0.49 in	12.44 mm	0.138 in	3.5 mm	3
Phoenix Contact 1735675	Tin		300 V	23	90° Right Angle	5.08 mm	0.2 in	Green	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	400 V	Polybutylene Terephthalate (PBT)	UL94 V-0	0.49 in	12.44 mm	0.138 in	3.5 mm	23
Phoenix Contact 1735701	Tin		300 V	20	90° Right Angle	5.08 mm	0.2 in	Green	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	400 V	Polybutylene Terephthalate (PBT)	UL94 V-0	0.49 in	12.44 mm	0.138 in	3.5 mm	20
Phoenix Contact 1973576				4	90° Right Angle	5 mm	0.197 in	Black	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	250 V			0.49 in	12.44 mm	0.138 in	3.5 mm	4
Phoenix Contact 1719626	Tin				90° Right Angle	5 mm	0.197 in	Cream	1	Solder	Through Hole	12 A	Header Male Pins Shrouded (2 Side)	250 V							3
