MSTBW Series
Pluggable Terminal Blocks 20 Pos 5.08mm pitch Through Hole Header
Manufacturer: Phoenix Contact
Catalog
Pluggable Terminal Blocks 20 Pos 5.08mm pitch Through Hole Header
Beta
⌘K
Pluggable Terminal Blocks 20 Pos 5.08mm pitch Through Hole Header
Pluggable Terminal Blocks 20 Pos 5.08mm pitch Through Hole Header
Pluggable Terminal Blocks 20 Pos 5.08mm pitch Through Hole Header
| Part | Contact Mating Finish | Positions Per Level [custom] | Voltage - UL | Number of Positions | Header Orientation | Pitch | Pitch | Color | Number of Levels | Termination Style | Mounting Type | Current - IEC | Type | Voltage - IEC | Housing Material | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Contact Tail Length | Contact Tail Length | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Tin | 7 | 300 V | 7 | 90° Right Angle | 5.08 mm | 0.2 in | Green | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 400 V | |||||||

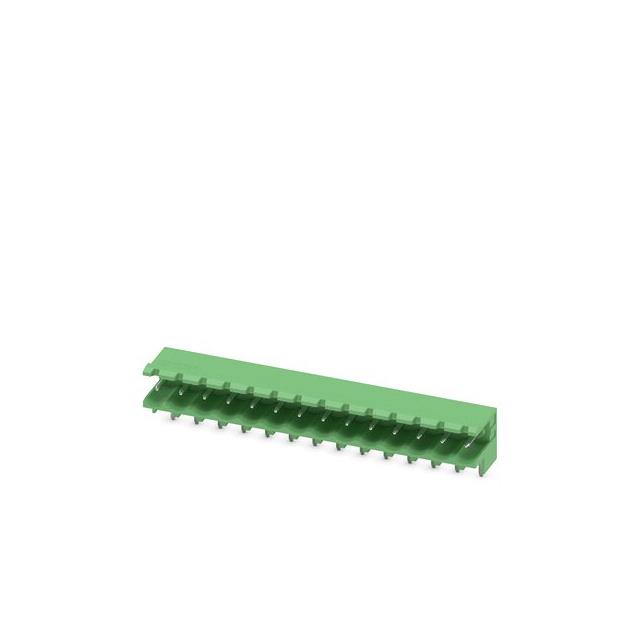

 Phoenix Contact | Tin | 300 V | 14 | 90° Right Angle | 5.08 mm | 0.2 in | Green | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 400 V | Polybutylene Terephthalate (PBT) | UL94 V-0 | 0.49 in | 12.44 mm | 0.138 in | 3.5 mm | 14 | |
 Phoenix Contact | Tin | 300 V | 2 | 90° Right Angle | 5 mm | 0.197 in | Green | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 400 V | Polybutylene Terephthalate (PBT) | UL94 V-0 | 0.49 in | 12.44 mm | 0.138 in | 3.5 mm | 2 | |
 Phoenix Contact | Tin | 300 V | 10 | 90° Right Angle | 5 mm | 0.197 in | Green | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 400 V | 10 | |||||||
 Phoenix Contact | Tin | 90° Right Angle | 5 mm | 0.197 in | Blue | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 250 V | 0.49 in | 12.44 mm | 0.138 in | 3.5 mm | 3 | |||||
Phoenix Contact | Tin | 300 V | 23 | 90° Right Angle | 5.08 mm | 0.2 in | Green | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 400 V | Polybutylene Terephthalate (PBT) | UL94 V-0 | 0.49 in | 12.44 mm | 0.138 in | 3.5 mm | 23 | |

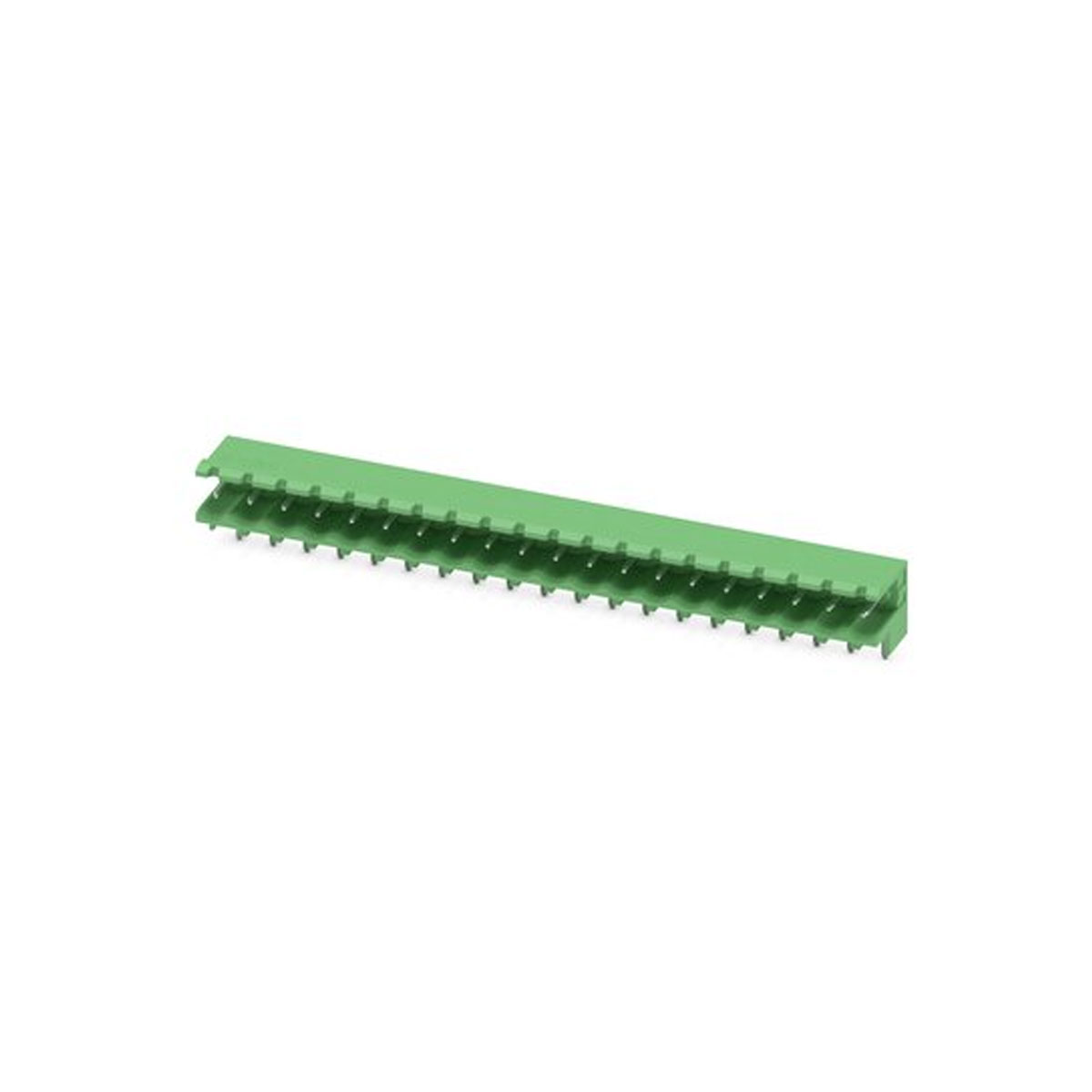

 Phoenix Contact | Tin | 300 V | 20 | 90° Right Angle | 5.08 mm | 0.2 in | Green | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 400 V | Polybutylene Terephthalate (PBT) | UL94 V-0 | 0.49 in | 12.44 mm | 0.138 in | 3.5 mm | 20 | |
 Phoenix Contact | 4 | 90° Right Angle | 5 mm | 0.197 in | Black | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 250 V | 0.49 in | 12.44 mm | 0.138 in | 3.5 mm | 4 | |||||
Phoenix Contact | Tin | 90° Right Angle | 5 mm | 0.197 in | Cream | 1 | Solder | Through Hole | 12 A | Header Male Pins Shrouded (2 Side) | 250 V | 3 |
