Technical Specifications
Parameters and characteristics for this part

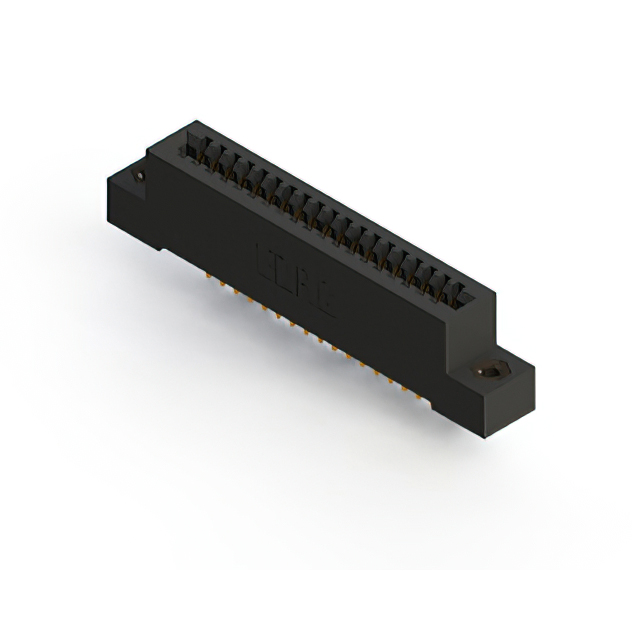

| Specification | 892-019-542-108 |
|---|---|
| Card Thickness [Max] | 0.07 in, 1.78 mm |
| Card Thickness [Min] | 1.37 mm, 0.054 in |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.25 Ám |
| Contact Finish Thickness | 10 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Threaded Insert, 4-40 |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 19 |
| Number of Positions/Bay/Row | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 C |
| Pitch | 0.1 " |
| Pitch | 2.54 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
| Part | Material - Insulation | Termination Rows | Number of Positions | Number of Rows | Pitch | Pitch | Read Out | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Type | Contact Finish | Mounting Type | Number of Positions/Bay/Row | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Solder | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Wire Wrap | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Wire Wrap | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||

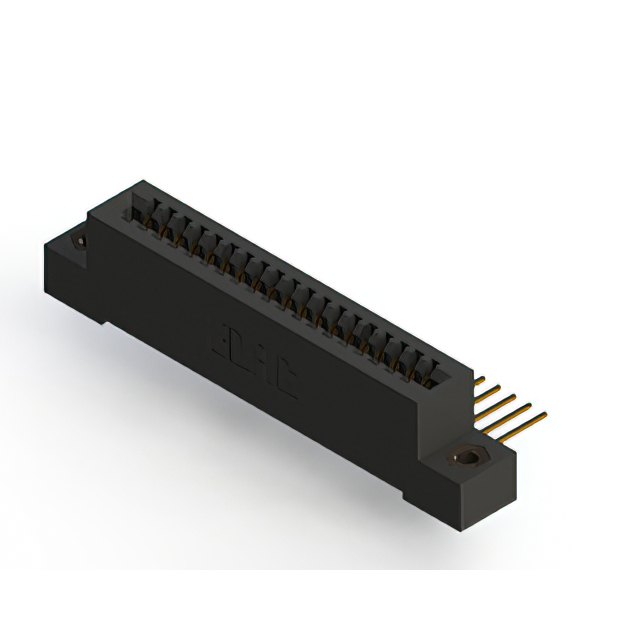

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Solder | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Right Angle Through Hole | 19 | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Wire Wrap | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Solder | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Wire Wrap | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Wire Wrap | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Solder | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 19 | 1 | 0.1 " | 2.54 mm | Single | Wire Wrap | 125 °C | -40 C | Black | 0.25 Ám | 10 Áin | Female | Cantilever | Gold | Through Hole | 19 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
