892-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 19POS 0.100

Part	Material - Insulation	Termination Rows	Number of Positions	Number of Rows	Pitch	Pitch	Read Out	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Type	Contact Finish	Mounting Type	Number of Positions/Bay/Row	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Contact Material
EDAC Inc. 892-019-521-112	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Solder	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy
EDAC Inc. 892-019-541-102	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Wire Wrap	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy
EDAC Inc. 892-019-540-101	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Wire Wrap	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge				0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy
EDAC Inc. 892-019-559-107	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Solder	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Right Angle Through Hole	19	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy
EDAC Inc. 892-019-542-108	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Wire Wrap	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy
EDAC Inc. 892-019-523-108	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Solder	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy

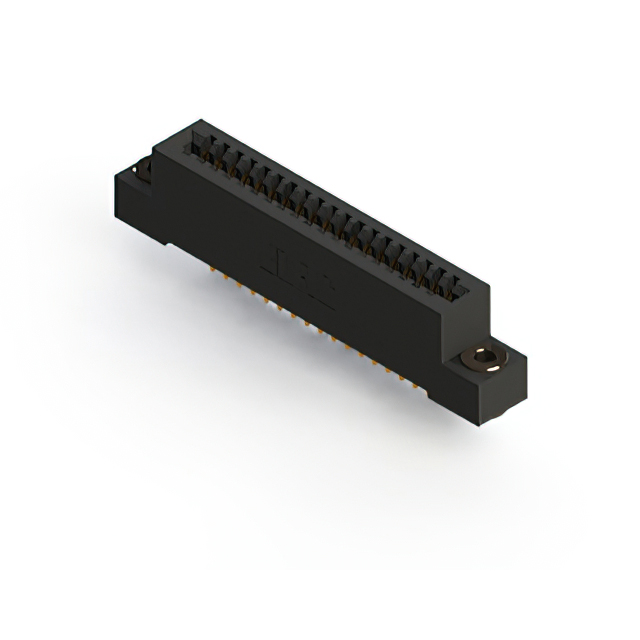

EDAC Inc. 892-019-541-103	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Wire Wrap	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge	Floating Bobbin Flush Mount	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy
EDAC Inc. 892-019-544-107	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Wire Wrap	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy
EDAC Inc. 892-019-523-112	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Solder	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy

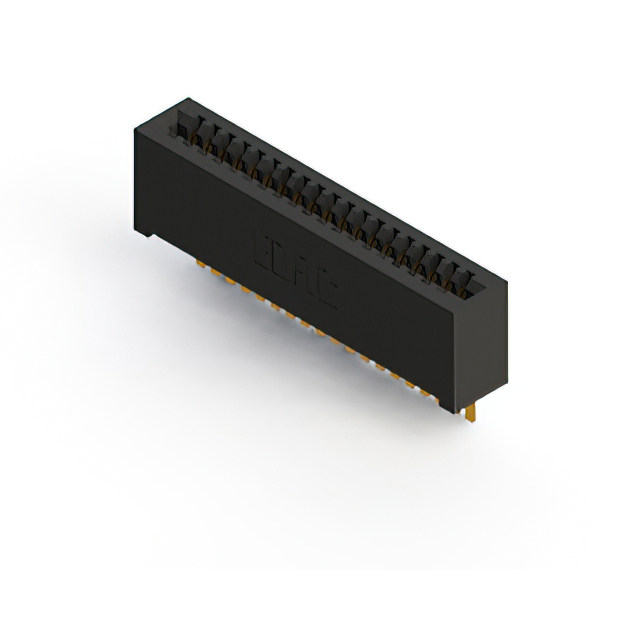

EDAC Inc. 892-019-544-101	Polyphenylene Sulfide (PPS)	1	19	1	0.1 "	2.54 mm	Single	Wire Wrap	125 °C	-40 C	Black	0.25 Ám	10 Áin	Female	Cantilever	Gold	Through Hole	19	Non Specified - Single Edge				0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy
