Connectors, Interconnects

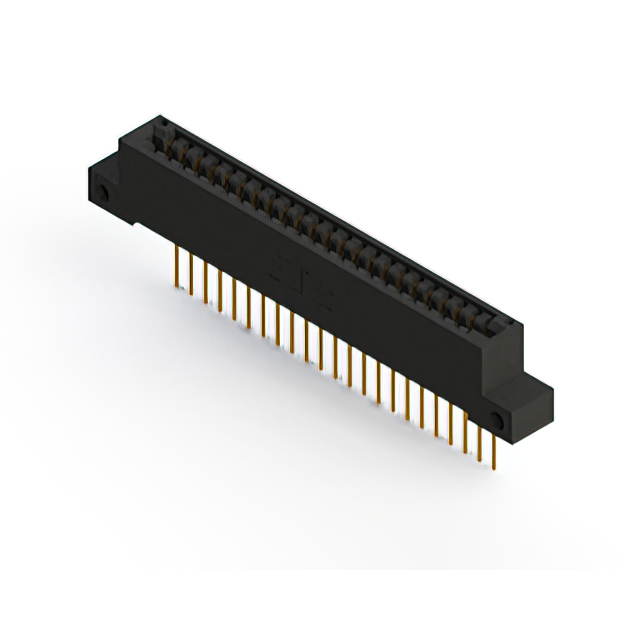

896-023-541-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 23POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

896-023-541-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 23POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-023-541-112

Card Thickness [Max]	0.07 in, 1.78 mm
Card Thickness [Min]	1.37 mm, 0.054 in
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.25 Ám
Contact Finish Thickness	10 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Side Opening, Unthreaded
Flange Feature [diameter]	0.128 "
Flange Feature [diameter]	3.25 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	23
Number of Positions/Bay/Row	23
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Pitch	3.18 mm
Pitch	0.125 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

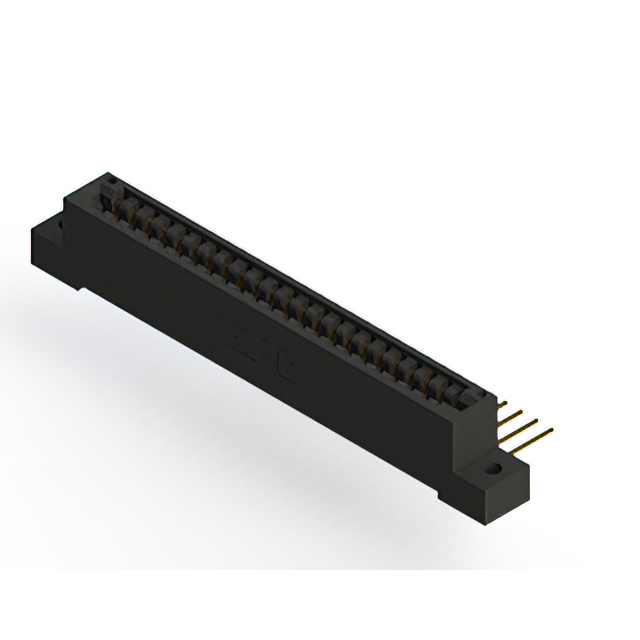

896-023 Series

Part	Material - Insulation	Termination Rows	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch	Pitch	Card Type	Gender	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Color	Read Out	Number of Rows	Mounting Type
EDAC Inc. 896-023-559-104	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Solder	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Right Angle Through Hole

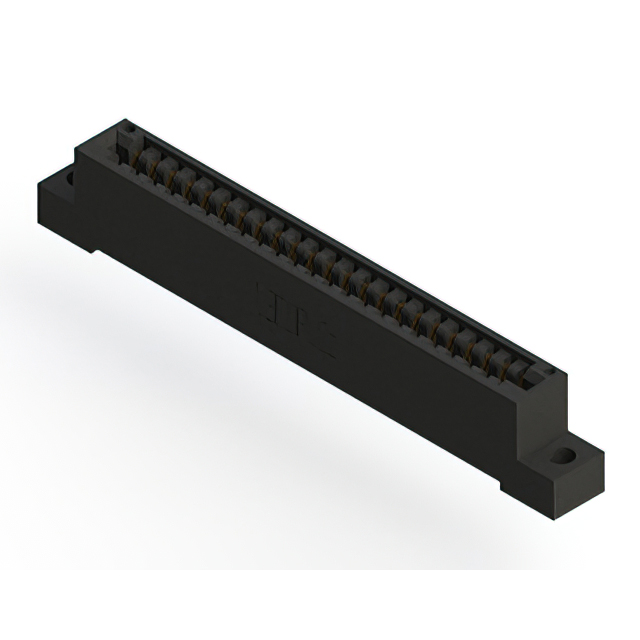

EDAC Inc. 896-023-521-104	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Solder	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Through Hole

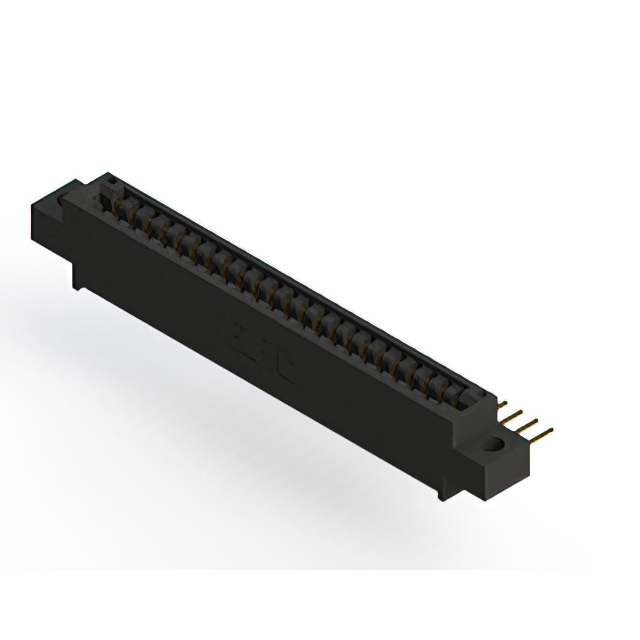

EDAC Inc. 896-023-559-604	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Solder	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever		0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Right Angle Through Hole

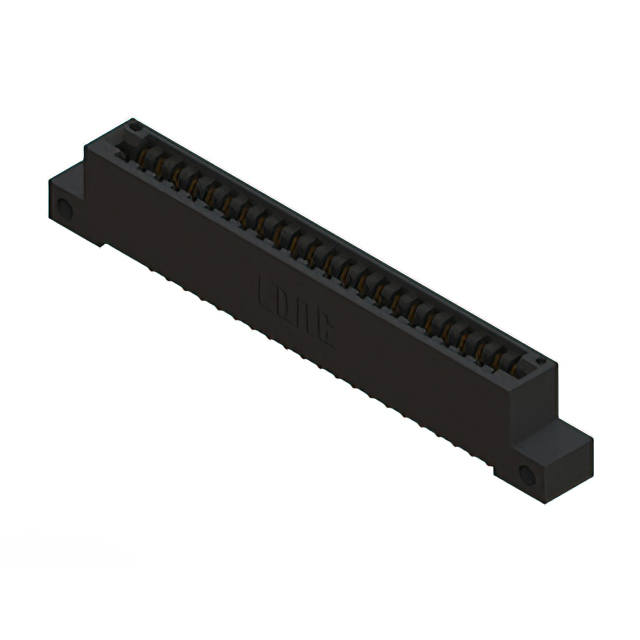

EDAC Inc. 896-023-500-112	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Solder Eyelet(s)	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Through Hole

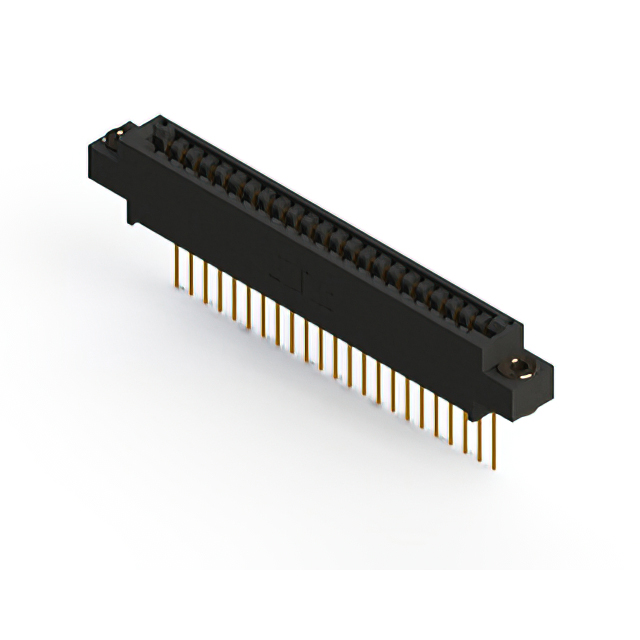

EDAC Inc. 896-023-541-603	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Wire Wrap	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Through Hole
EDAC Inc. 896-023-541-107	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Wire Wrap	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever	Flush Mount M3 Threaded Insert Top Opening			0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Through Hole

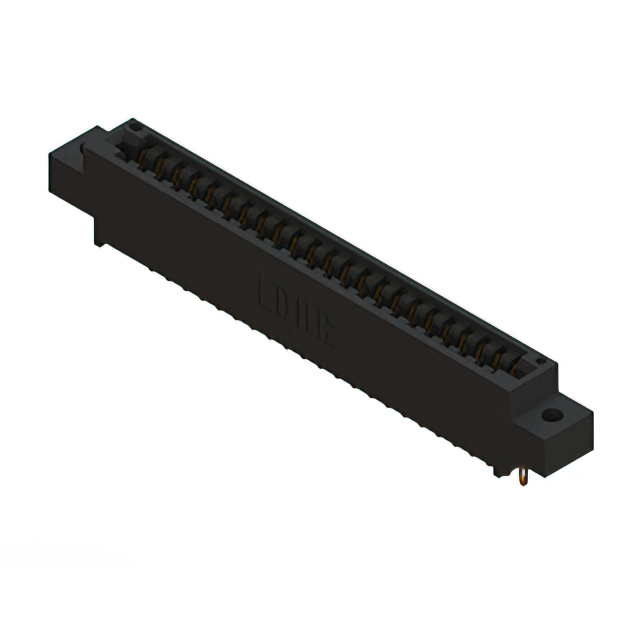

EDAC Inc. 896-023-500-602	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Solder Eyelet(s)	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever		0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Through Hole
EDAC Inc. 896-023-558-102	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Solder	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Right Angle Through Hole
EDAC Inc. 896-023-541-112	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Wire Wrap	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Through Hole
EDAC Inc. 896-023-558-603	Polyphenylene Sulfide (PPS)	1	23	125 °C	-40 C	Gold	Solder	Copper Alloy	0.25 Ám	10 Áin	23	3.18 mm	0.125 in	Non Specified - Single Edge	Female	Cantilever	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	Single	1	Right Angle Through Hole
