Technical Specifications

Parameters and characteristics for this part

Specification19300101131

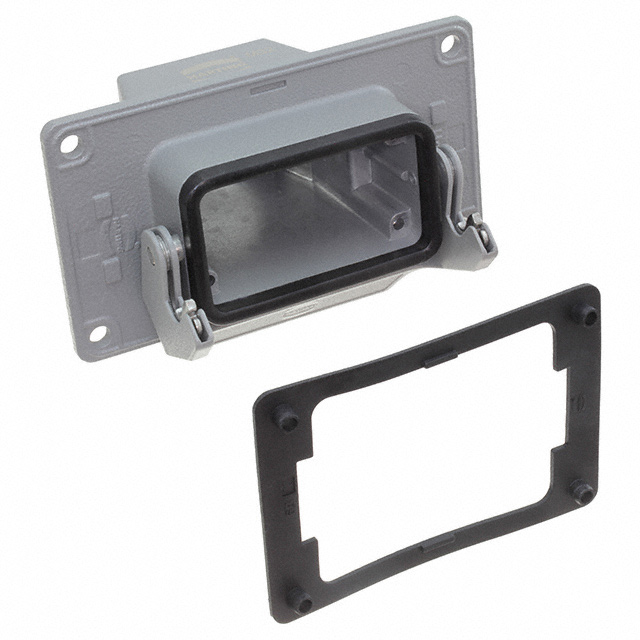

Connector TypeHood - Panel Mount
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialAluminum, Die Cast
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 C
Size10B
Size / Dimension [x]126.5 mm
Size / Dimension [x]4.98 in
Size / Dimension [y]2.776 in
Size / Dimension [y]70.5 mm
Size / Dimension [z]80.4 mm
Size / Dimension [z]3.165 in
StyleTop Entry
Thread SizeM25

19300101 Series
