19300101 Series

Manufacturer: HARTING

Catalog

10B SURFACE MOUNT HOUSING, DOUBLE LEVER, FOR HOOD W/ LEVERS LOW CONSTRUCTION, 2XM25

Part	Size	Style	Housing Material	Ingress Protection	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Connector Type	Housing Finish	Housing Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING 19300101261	10B	Side Entry Dual	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	125 °C	-40 C	M25	Base - Box Mount	Powder Coated	Gray
HARTING 19300101521	10B	Side Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	125 °C	-40 C	M25	Hood	Powder Coated	Gray	43 mm	72.6 mm	57 mm	2.858 in	2.244 "	1.693 "
HARTING 19300101502
HARTING 19300101131	10B	Top Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood	125 °C	-40 C	M25	Hood - Panel Mount	Powder Coated	Gray	70.5 mm	126.5 mm	80.4 mm	4.98 in	3.165 in	2.776 in
HARTING 19300101255	10B	Side Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	125 °C	-40 C	M20	Base - Box Mount	Powder Coated	Gray	52 mm	94 mm	53.8 mm	3.701 in	2.118 in	2.047 in	Cover
HARTING 19300101265	10B	Side Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood	125 °C	-40 C	M20	Base - Box Mount	Powder Coated	Gray	52 mm	94 mm	53.8 mm	3.701 in	2.118 in	2.047 in

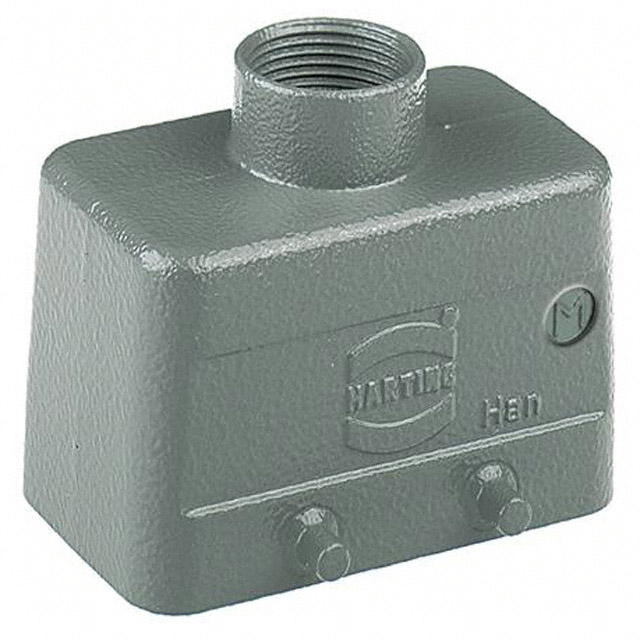

HARTING 19300101420	10B	Top Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	125 °C	-40 C	M20	Hood	Powder Coated	Gray	43 mm	72.6 mm	58.5 mm	2.858 in	2.303 "	1.693 "
HARTING 19300101730	10B	Bottom Entry Top or Bottom Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	125 °C	-40 C	M20	Hood - Coupling	Powder Coated	Gray		72.6 mm		2.858 in	1.866 "	1.693 "	Cable to Cable	43 mm	47.4 mm
HARTING 19300101142	10B	Top Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	125 °C	-40 C	M32	Hood - Panel Mount	Powder Coated	Gray	70.5 mm	126.5 mm	80.4 mm	4.98 in	3.165 in	2.776 in
HARTING 19300101230	10B	Side Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	125 °C	-40 C	M20	Base - Box Mount	Powder Coated	Gray	52 mm	94 mm	53.8 mm	3.701 in	2.118 in	2.047 in
