Connectors, Interconnects

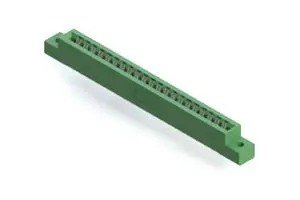

316-021-421-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
316-021-421-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 21 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part

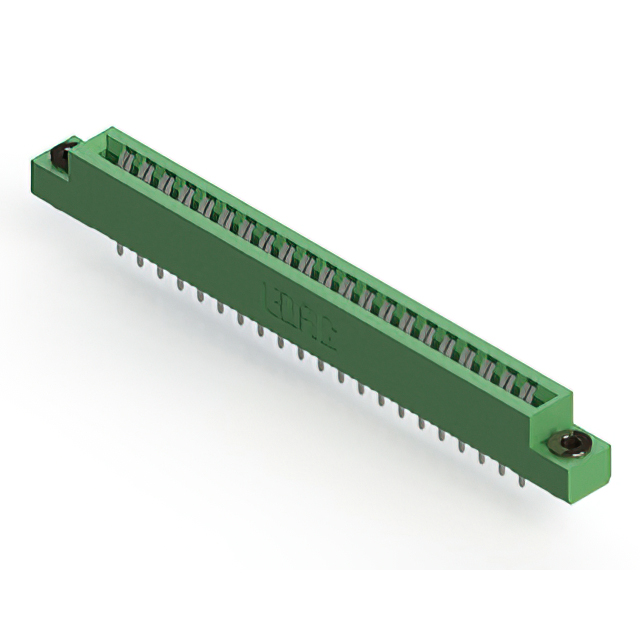

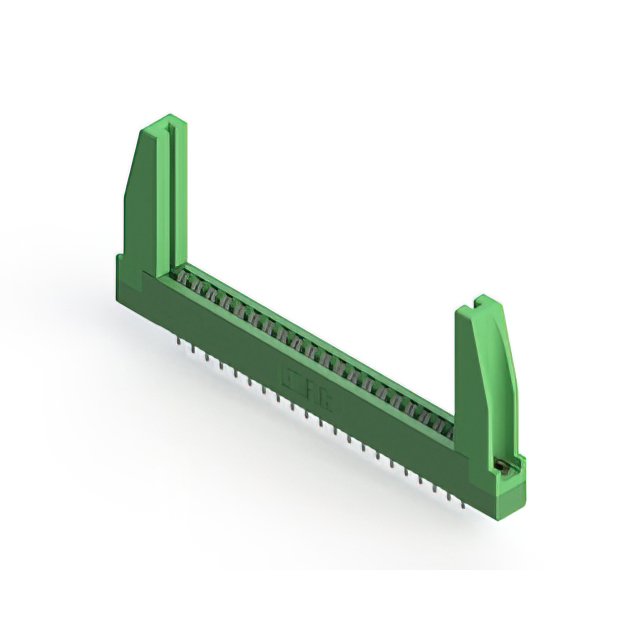

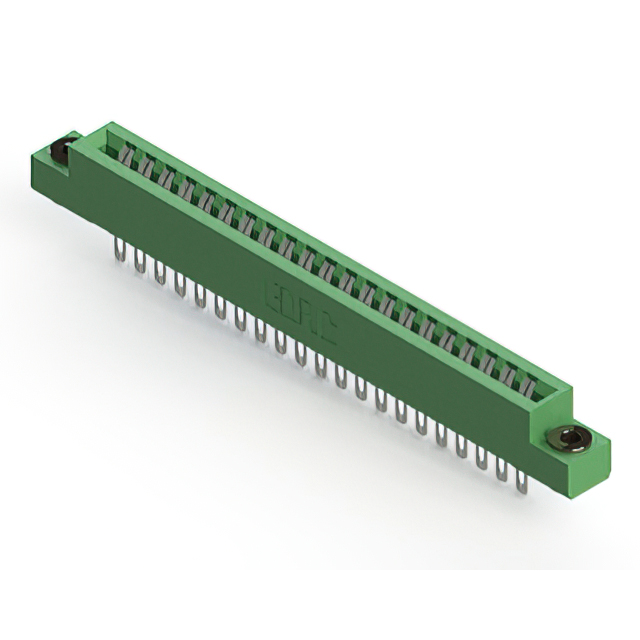

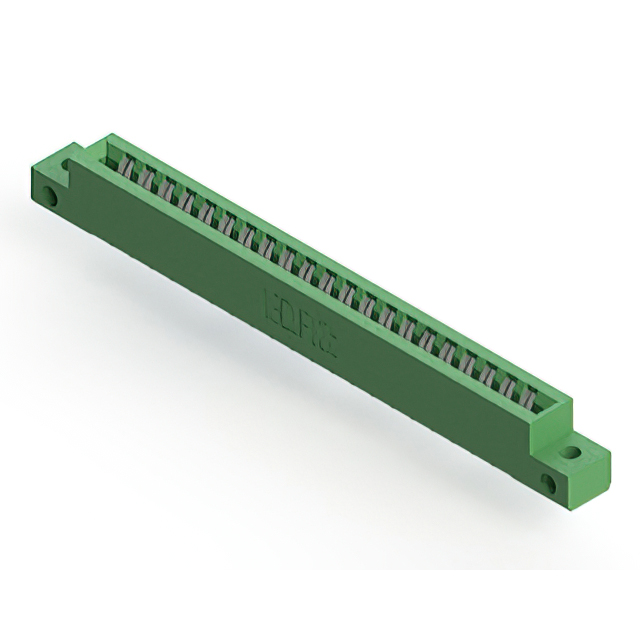

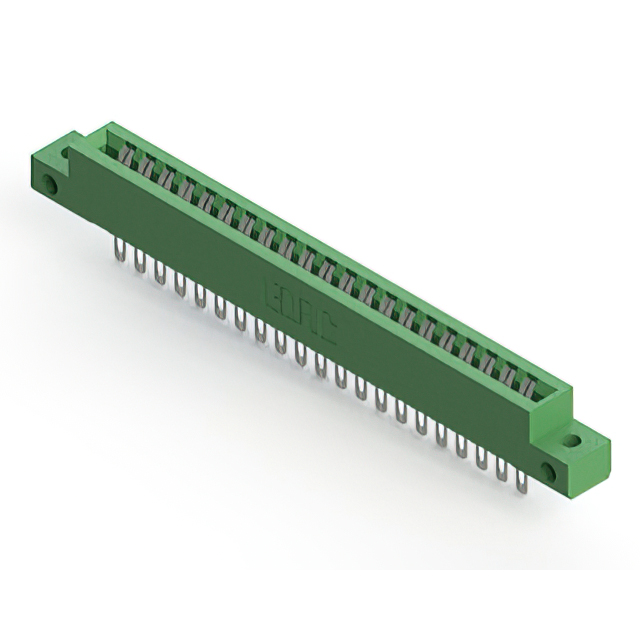

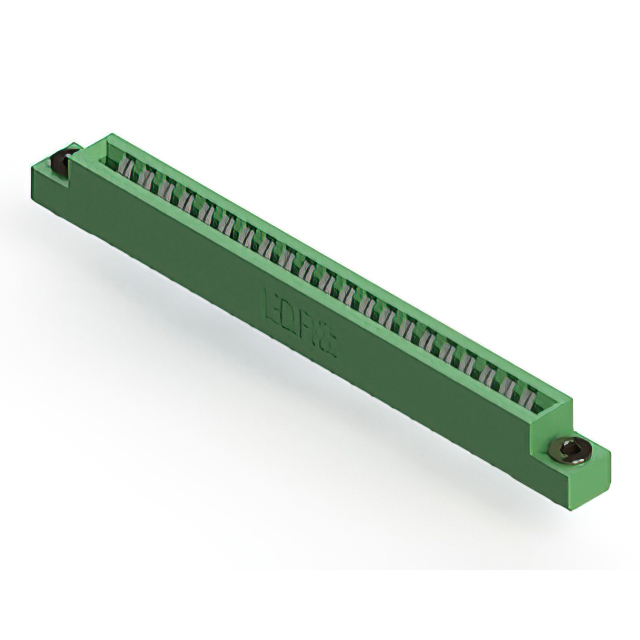

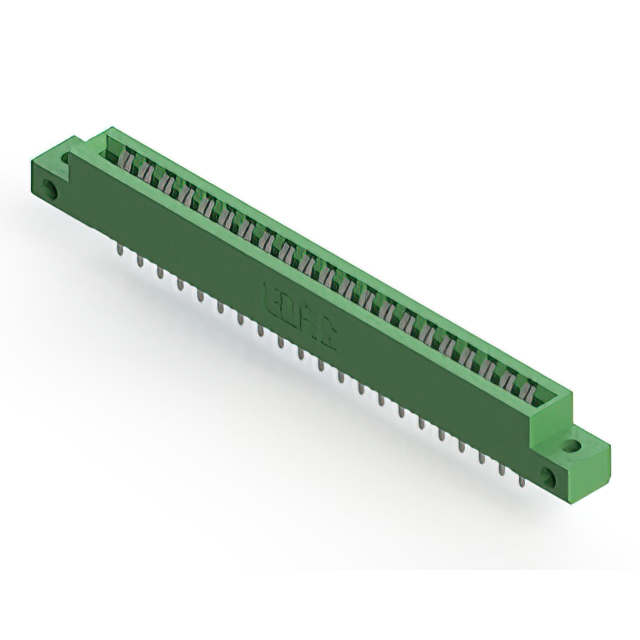

| Specification | 316-021-421-102 |
|---|---|
| Card Thickness [Max] | 0.07 in, 1.78 mm |
| Card Thickness [Min] | 1.37 mm, 0.054 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 42 |
| Number of Positions/Bay/Row [custom] | 21 |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 C |
| Pitch | 3.96 mm |
| Pitch | 0.156 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
| Part | Termination Rows | Material - Insulation | Read Out | Features | Number of Positions/Bay/Row [custom] | Termination | Number of Rows [custom] | Contact Type | Number of Positions | Mounting Type | Flange Feature | Gender | Pitch | Pitch | Contact Finish | Color | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | Card Guides | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder Eyelet(s) | 2 | Cantilever | 42 | Panel Mount | Flush Mount Side Opening Unthreaded | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder Eyelet(s) | 2 | Cantilever | 42 | Panel Mount | Floating Bobbin Flush Mount | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | |||
EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Flush Mount Top Opening Unthreaded | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Flush Mount Side Opening Unthreaded | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Floating Bobbin Flush Mount | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Flush Mount Side Opening Unthreaded | Female | 3.96 mm | 0.156 in | Gold | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Flush Mount Side Opening Unthreaded | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | Card Guides | 21 | Solder Eyelet(s) | 2 | Cantilever | 42 | Panel Mount | 4-40 Flush Mount Threaded Insert Top Opening | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
316-021 Series
42 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
