316-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K

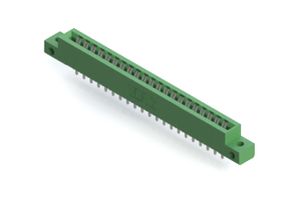

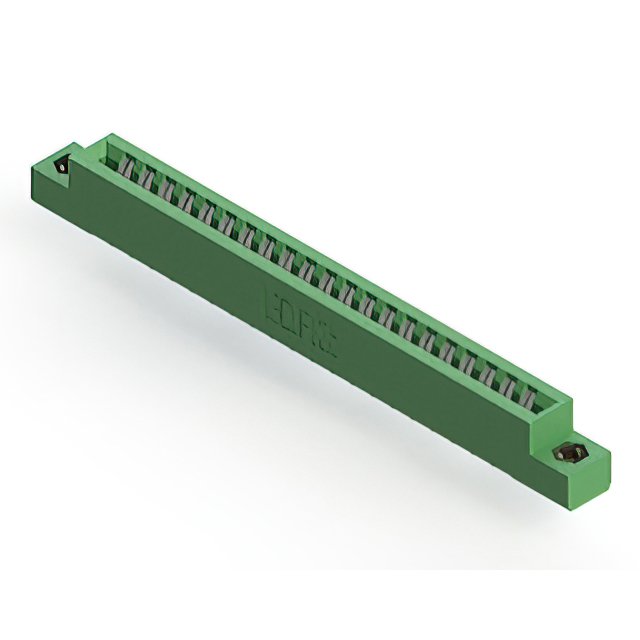

CONN EDGE DUAL FMALE 42POS 0.156
| Part | Termination Rows | Material - Insulation | Read Out | Features | Number of Positions/Bay/Row [custom] | Termination | Number of Rows [custom] | Contact Type | Number of Positions | Mounting Type | Flange Feature | Gender | Pitch | Pitch | Contact Finish | Color | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

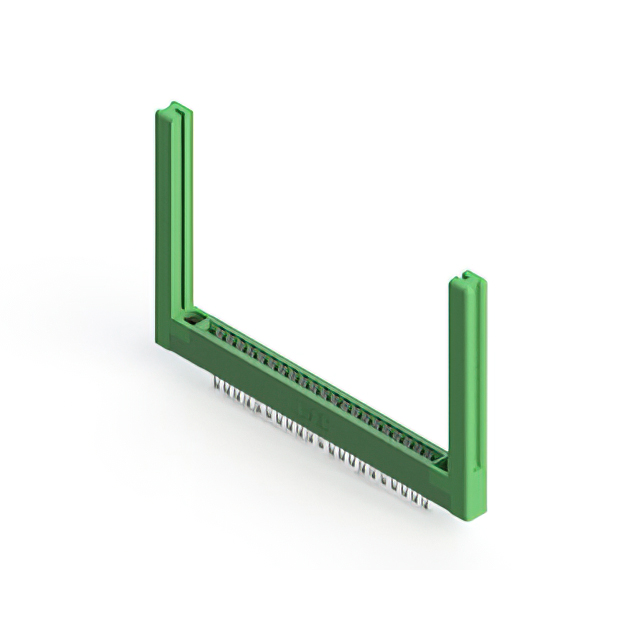

 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | Card Guides | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder Eyelet(s) | 2 | Cantilever | 42 | Panel Mount | Flush Mount Side Opening Unthreaded | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder Eyelet(s) | 2 | Cantilever | 42 | Panel Mount | Floating Bobbin Flush Mount | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Flush Mount Top Opening Unthreaded | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Flush Mount Side Opening Unthreaded | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Floating Bobbin Flush Mount | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Flush Mount Side Opening Unthreaded | Female | 3.96 mm | 0.156 in | Gold | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | Flush Mount Side Opening Unthreaded | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | 21 | Solder | 2 | Cantilever | 42 | Panel Mount Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Dual | Card Guides | 21 | Solder Eyelet(s) | 2 | Cantilever | 42 | Panel Mount | 4-40 Flush Mount Threaded Insert Top Opening | Female | 3.96 mm | 0.156 in | Tin | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
