Cables, Wires

C2412A.41.10

Active

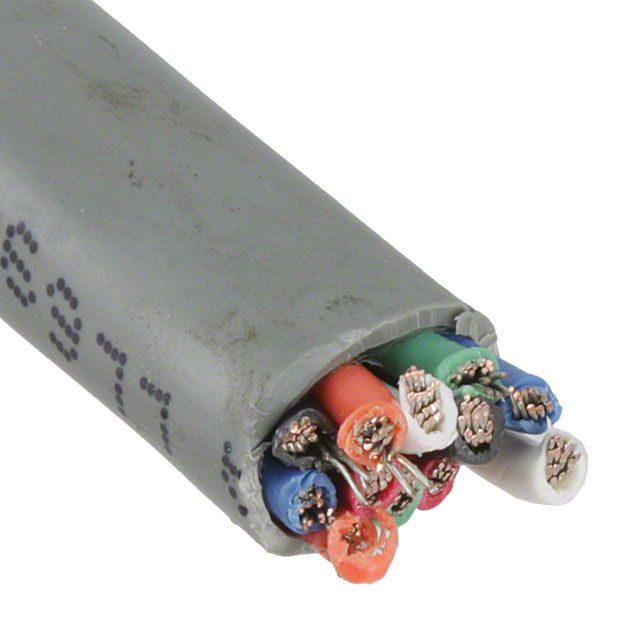

CABLE 12COND 18AWG GRAY

Search across all available documentation for this part.

Cables, Wires

Active

CABLE 12COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2412A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter	10.19 mm
Jacket (Insulation) Diameter	0.401 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.813 mm
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Gray
Length	304.8 m
Length	1000 ft
Number of Conductors	12
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 ░C
Usage	Communication, Control
Voltage	300 VDC
Wire Gauge	18 AWG

Part	Length	Length	Voltage	Jacket Color	Jacket (Insulation) Material	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Insulation	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Material	Length [x]	Length [x]
Prysmian Group C2412A.41.10	304.8 m	1000 ft	300 VDC	Gray	Poly-Vinyl Chloride (PVC)	Communication Control	80 °C	-20 ░C	12	18 AWG	16	30 AWG	0.813 mm	0.032 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	10.19 mm	0.401 in	Copper Tinned
Prysmian Group C2412A.41.10	15.24 m 304.8 m	50 ft 1000 ft	300 VDC	Gray	Poly-Vinyl Chloride (PVC)	Communication Control	80 °C	-20 ░C	12	18 AWG	16	30 AWG	0.813 mm	0.032 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	10.19 mm	0.401 in	Copper Tinned	100 ft	30.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
