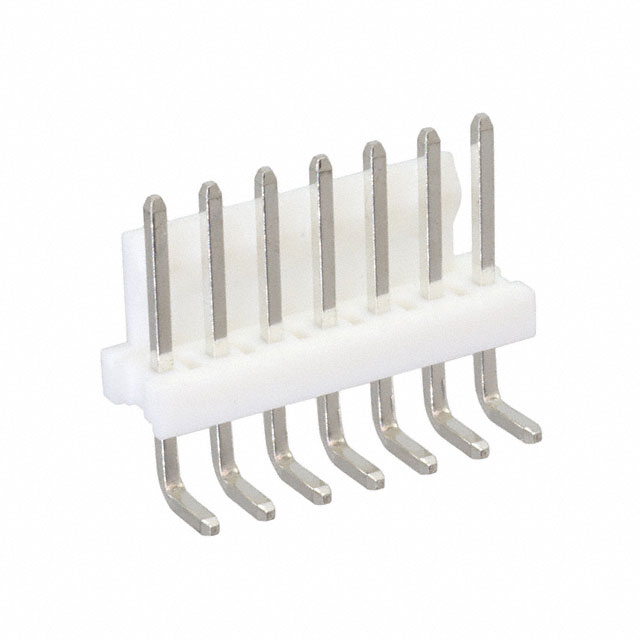

Specification	LHD-07-TRA-V0

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	11.4 mm
Contact Length - Mating	0.449 in
Contact Length - Post [x]	0.126 "
Contact Length - Post [x]	3.2 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.125 in
Insulation Height	3.18 mm
Insulation Material	Glass Filled, Nylon 6/6, Polyamide (PA66)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 C
Pitch - Mating	3.96 mm
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

LHD-07 Series

Part	Number of Rows	Shrouding	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Color	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Length - Post	Contact Length - Post	Termination	Contact Material	Style	Fastening Type	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Connector Type	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech LHD-07-TS	1	Shrouded - 1 Wall	Nylon 6/6 Polyamide (PA66)	3.96 mm	0.156 in	7	White	Through Hole	Male Pin	-40 C	105 ░C	Square	0.142 in	3.6 mm	Solder	Brass	Board to Cable/Wire	Friction Lock	10.8 mm	0.425 in	7 A	UL94 V-2	Tin	All	11.38 mm	0.448 in	Header	18.16 mm	0.715 in
Adam Tech LHD-07-TRB-V0	1	Shrouded - 1 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	3.96 mm	0.156 in	7	White	Right Angle Through Hole	Male Pin	-40 C	85 °C	Square			Solder	Brass	Board to Cable/Wire	Friction Lock			7 A	UL94 V-0	Tin	All	11.4 mm	0.449 in	Header			0.125 in	3.18 mm	0.126 "	3.2 mm

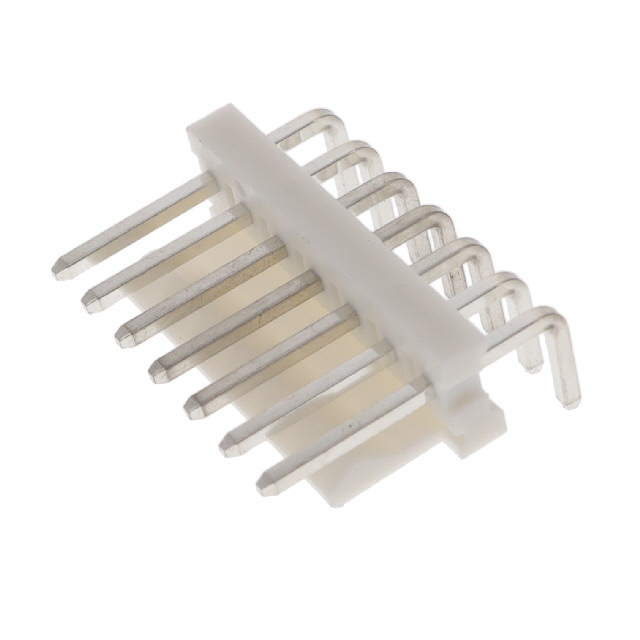

Adam Tech LHD-07-TRB	1	Shrouded - 1 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	3.96 mm	0.156 in	7	White	Right Angle Through Hole	Male Pin	-40 C	85 °C	Square			Solder	Brass	Board to Cable/Wire	Friction Lock			7 A	UL94 V-2	Tin	All	11.4 mm	0.449 in	Header			0.3 in	7.62 mm	0.126 "	3.2 mm
Adam Tech LHD-07-TRA-V0	1	Shrouded - 1 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	3.96 mm	0.156 in	7	White	Right Angle Through Hole	Male Pin	-40 C	85 °C	Square			Solder	Brass	Board to Cable/Wire	Friction Lock			7 A	UL94 V-0	Tin	All	11.4 mm	0.449 in	Header			0.125 in	3.18 mm	0.126 "	3.2 mm
Adam Tech LHD-07-TRA	1	Shrouded - 1 Wall	Glass Filled Nylon 6/6 Polyamide (PA66)	3.96 mm	0.156 in	7	White	Right Angle Through Hole	Male Pin	-40 C	85 °C	Square			Solder	Brass	Board to Cable/Wire	Friction Lock			7 A	UL94 V-2		All	11.4 mm	0.449 in	Header			0.3 in	7.62 mm	0.126 "	3.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.80
		10	$ 0.61
		100	$ 0.47
		500	$ 0.39
	N/A	896	$ 0.59
