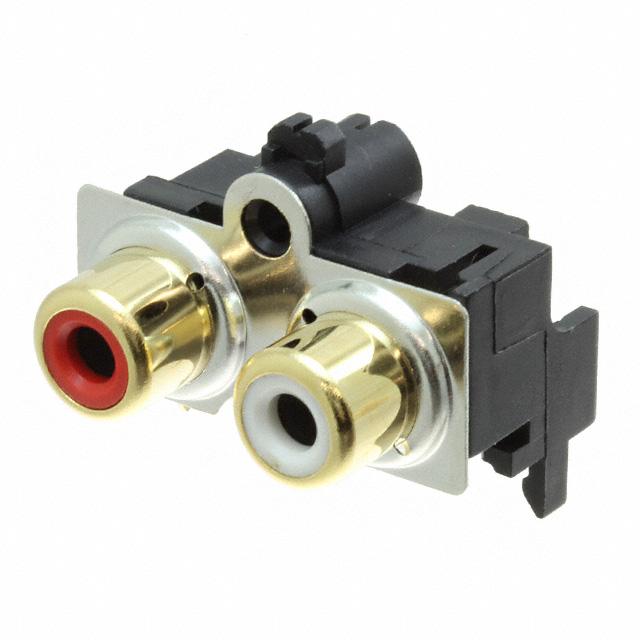

PJRAS2X1S01AUX
ActiveSwitchcraft Inc.
CONN RCA F/F 1/1 POS SOLDER RA THRU-HOLE 6 TERMINAL 2 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
PJRAS2X1S01AUX
ActiveSwitchcraft Inc.
CONN RCA F/F 1/1 POS SOLDER RA THRU-HOLE 6 TERMINAL 2 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJRAS2X1S01AUX |
|---|---|
| Body Color | White, Gold |
| Body Material | Copper Alloy |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 2 A |
| Features | Grounding Tab |
| Gender | Female |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm |
| Insulation Color | White, Red |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 2 Sets of 2 Conductors, 4 Contacts |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Signal Lines | Mono |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.63 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.80 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.40 | |||
| 500 | $ 1.30 | |||
Description
General part information
PJRAS2 Series
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
