PJRAS2X2S01X

Active

Switchcraft Inc.

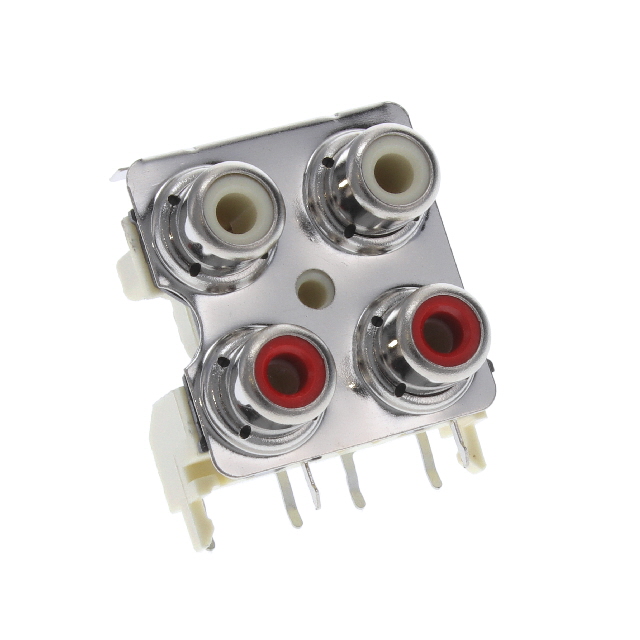

CONN RCA JACK MONO 3.2MM R/A

Search across all available documentation for this part.

Connectors, Interconnects

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PJRAS2X2S01X

Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Phono (RCA) Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	2 A
Gender	Female
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Industry Recognized Mating Diameter [diameter]	9 mm, 3.2 mm
Insulation Color	White, Red
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	4 Sets of 2 Conductors
Number of Positions/Contacts	6 Contacts
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Shielded
Signal Lines	Mono
Termination	Solder

Part	Insulation Color	Body Color	Termination	Signal Lines	Industry Recognized Mating Diameter [diameter]	Mounting Type	Housing Material	Current Rating (Amps)	Shielding	Number of Positions/Contacts	Number of Positions/Contacts	Contact Material - Plating	Contact Material	Gender	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material - Plating [custom]	Features
Switchcraft Inc. PJRAS2X2S01X	Red White	Black Silver	Solder	Mono	3.2 mm 9 mm	Through Hole Right Angle	Acrylonitrile Butadiene Styrene (ABS)	2 A	Shielded	4 Sets of 2 Conductors	6 Contacts	Tin	Copper Alloy	Female	Copper Alloy	-25 °C	85 °C	Phono (RCA) Jack
Switchcraft Inc. PJRAS2X1S01AUX	Red White	Gold White	Solder	Mono	3.2 mm 9 mm	Through Hole Right Angle	Acrylonitrile Butadiene Styrene (ABS)	2 A	Shielded	2 Sets of 2 Conductors 4 Contacts			Copper Alloy	Female	Copper Alloy	-25 °C	85 °C	Phono (RCA) Jack	Gold	Grounding Tab
Switchcraft Inc. PJRAS2X1S01X	Red White	Gold White	Solder	Mono	3.2 mm 9 mm	Through Hole Right Angle	Acrylonitrile Butadiene Styrene (ABS)	2 A	Shielded	2 Sets of 2 Conductors 4 Contacts		Tin	Copper Alloy	Female	Copper Alloy	-25 °C	85 °C	Phono (RCA) Jack		Grounding Tab
Switchcraft Inc. PJRAS2X2S01AUX	Red White	Black Gold	Solder	Mono	3.2 mm 9 mm	Through Hole Right Angle	Acrylonitrile Butadiene Styrene (ABS)	2 A	Shielded	4 Sets of 2 Conductors	6 Contacts		Copper Alloy	Female	Copper Alloy	-25 °C	85 °C	Phono (RCA) Jack	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
