Connectors, Interconnects

09332006217

Active
HARTING

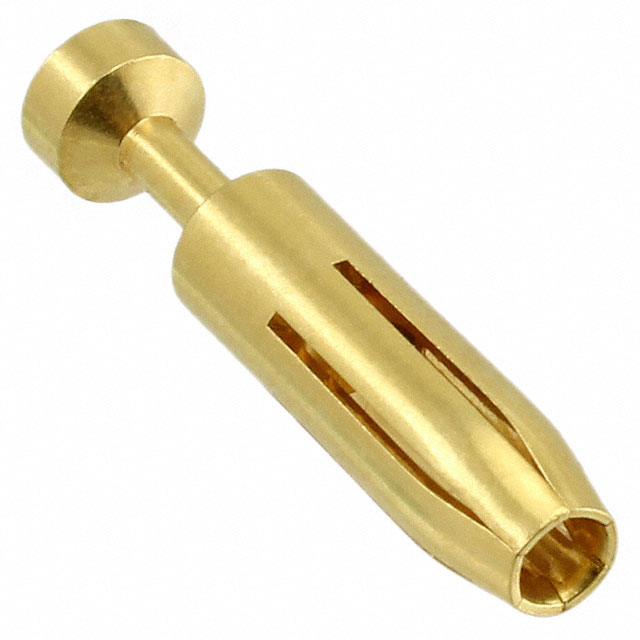

HEAVY DUTY POWER CONNECTORS HAN E HMC FEMALE CONTACT AU AWG 26-22

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing ENManufacturer Catalogue EN+2
09332006217
Connectors, Interconnects

09332006217

Active
HARTING

HEAVY DUTY POWER CONNECTORS HAN E HMC FEMALE CONTACT AU AWG 26-22

Deep-Dive with AI

DocumentsDrawing ENManufacturer Catalogue EN+2

Technical Specifications

Parameters and characteristics for this part

Specification09332006217
Contact FinishGold
Contact TerminationCrimp
Pin or SocketSocket
TypeMachined
Wire Gauge [Max]26 AWG
Wire Gauge [Min]22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 8.32
10$ 7.49
25$ 7.05
50$ 6.87
100$ 6.69
300$ 5.97
500$ 5.60
1000$ 4.95
N/A 30$ 8.64
MouserN/A 1$ 6.69
10$ 5.69
20$ 5.34
50$ 5.08
100$ 4.83
200$ 4.82
NewarkEach 1$ 7.42
10$ 6.66
25$ 6.04
50$ 5.52
100$ 5.09
250$ 4.72
500$ 4.40

Description

General part information

Han E Series

Contact Crimp Socket 22-26 AWG Gold
