Han E Series

Manufacturer: HARTING

Catalog

HAN E 24 POS. F INSERT CRIMP MATL PPS ROHS COMPLIANT: NA

Part	Termination Style	Connector Type	Number of Positions	Gender	Contact Termination	Wire Gauge	Type	Pin or Socket	Contact Finish	Material Flammability Rating	Housing Material	Color	Size	Voltage Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness
HARTING 09330242752	Crimp	Insert without Contacts	24	Female
HARTING 09332006116					Crimp	16 AWG	Machined	Pin	Gold

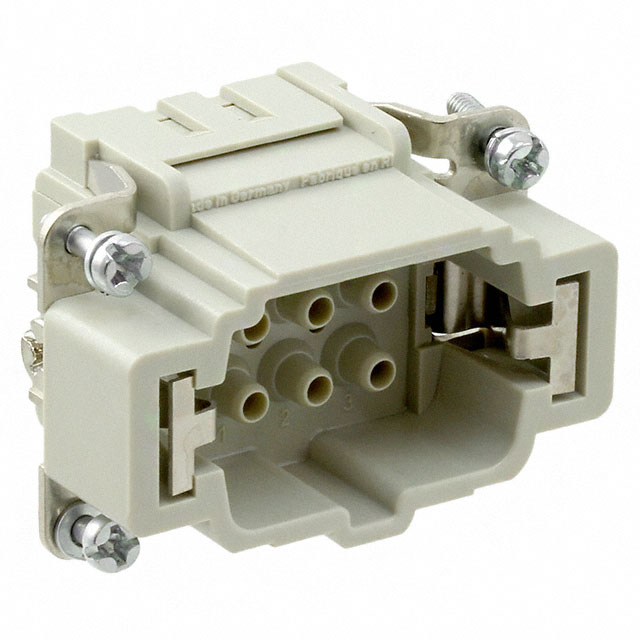

HARTING 09332062602	Crimp	Insert without Contacts		Male						UL94 V-0	Polycarbonate (PC)	Gray	6B	500 V	6+Ground	125 °C	-40 C	16 A	Han E® HMC
HARTING 09332006217					Crimp		Machined	Socket	Gold											26 AWG	22 AWG
HARTING 09332006221					Crimp	12 AWG	Machined	Socket	Gold
HARTING 09332102602	Crimp	Insert without Contacts		Male						UL94 V-0	Polycarbonate (PC)	Gray	10B	500 V	10+Ground	125 °C	-40 C	16 A	Han E® HMC
HARTING 09330006215					Crimp	18 AWG	Machined	Socket	Gold													78.7 µin	2 µm

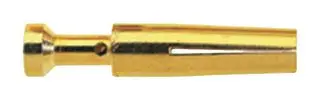

HARTING 09330006273					Crimp		Machined	Socket	Gold											26 AWG	22 AWG	78.7 µin	2 µm
HARTING 09330242644	Crimp	Insert without Contacts	24	Male
HARTING 09330062652	Crimp	Insert without Contacts	6	Male
