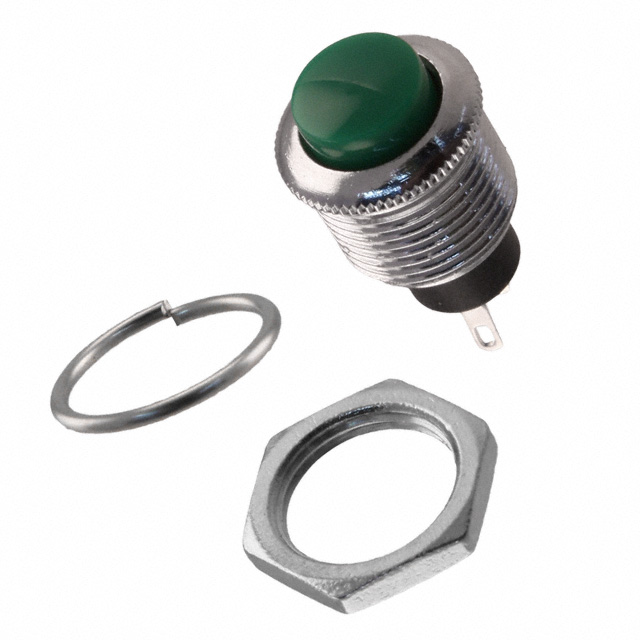

RP3502MAGRN

Switches

RP3502MAGRN

Active

PUSHBUTTON SWITCHES SPST-NO 3A MOM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RP3502MAGRN | Datasheet

RP3502MAGRN

Switches

RP3502MAGRN

Active

PUSHBUTTON SWITCHES SPST-NO 3A MOM PCB

Deep-Dive with AI

DocumentsDatasheet RP3502MAGRN | Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP3502MAGRN

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	6000 Cycles
Mechanical Life	6000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	120 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.63
		50	$ 2.94
		100	$ 2.80
		1000	$ 2.33
	N/A	2642	$ 3.21
Mouser	N/A	1	$ 2.67
		10	$ 2.20
		100	$ 2.10
		250	$ 1.99
		500	$ 1.94
		5000	$ 1.87

Description

General part information

RP3502 Series

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

RP3502MAGRN | Datasheet

RP3502 Series

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Type	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Mounting Type	Switch Function	Type	Circuit	Actuator Marking
E-Switch RP3502BGRN	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Green	3 A	Solder Lug	Panel Mount Front	On-Mom	Standard	SPDT
E-Switch RP3502MABLK	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Black	3 A	Solder Lug	Panel Mount Front	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502MAGRN	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Green	3 A	Solder Lug	Panel Mount Front	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502MARED	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Red	3 A	Solder Lug	Panel Mount Front	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502ABLK	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Black	3 A	Solder Lug	Panel Mount Front	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502BBLK	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Black	3 A	Solder Lug	Panel Mount Front	On-Mom	Standard	SPST-NC	No Marking
E-Switch RP3502MBRED	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Red	3 A	Solder Lug	Panel Mount Front	On-Mom	Standard	SPST-NC	No Marking
E-Switch RP3502MBGRN	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Green	3 A	Solder Lug	Panel Mount Front	On-Mom	Standard	SPST-NC	No Marking
