RP3502 Series

Manufacturer: E-Switch

Catalog

SWITCH PB SPDT 3A 120V

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Type	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Mounting Type	Switch Function	Type	Circuit	Actuator Marking
E-Switch RP3502BGRN	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Green	3 A	Solder Lug	Panel Mount Front	On-Mom	Standard	SPDT
E-Switch RP3502MABLK	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Black	3 A	Solder Lug	Panel Mount Front	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502MAGRN	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Green	3 A	Solder Lug	Panel Mount Front	Off-Mom	Standard	SPST-NO	No Marking

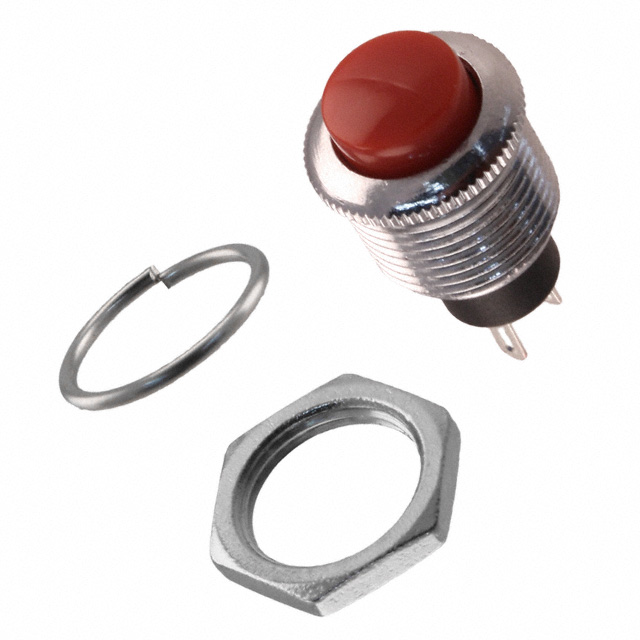

E-Switch RP3502MARED	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Red	3 A	Solder Lug	Panel Mount Front	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502ABLK	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Black	3 A	Solder Lug	Panel Mount Front	Off-Mom	Standard	SPST-NO	No Marking
E-Switch RP3502BBLK	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Black	3 A	Solder Lug	Panel Mount Front	On-Mom	Standard	SPST-NC	No Marking
E-Switch RP3502MBRED	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Red	3 A	Solder Lug	Panel Mount Front	On-Mom	Standard	SPST-NC	No Marking
E-Switch RP3502MBGRN	6000 Cycles	6000 Cycles	12.7 mm	120 V	Button Round	Green	3 A	Solder Lug	Panel Mount Front	On-Mom	Standard	SPST-NC	No Marking
