Technical Specifications
Parameters and characteristics for this part
| Specification | C2424A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 11.91 mm |
| Jacket (Insulation) Diameter [diameter] | 0.469 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.813 mm |
| Jacket (Insulation) Thickness | 0.032 in |
| Jacket Color | Gray |
| Length | 304.8 m, 15.24 m |
| Length | 1000 ft, 50 ft |
| Length [x] | 100 ft |
| Length [x] | 30.5 m |
| Number of Conductors | 19 |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 ░C |
| Ratings | ASTM B-33 |
| Usage | Communication, Control |
| Voltage | 300 VDC |
| Wire Gauge | 18 AWG |
| Part | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Conductor Material | Wire Gauge | Voltage | Usage | Cable Type | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Prysmian Group | 19 | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 11.91 mm | 0.469 " | ASTM B-33 | 152.4 m | 500 ft | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | 18 AWG | 300 VDC | Communication Control | Multi-Conductor | Gray | ||
Prysmian Group | 19 | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 11.91 mm | 0.469 " | ASTM B-33 | 152.4 m | 500 ft | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | 18 AWG | 300 VDC | Communication Control | Multi-Conductor | Gray | ||
Prysmian Group | 19 | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 11.91 mm | 0.469 " | ASTM B-33 | 304.8 m | 1000 ft | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | 18 AWG | 300 VDC | Communication Control | Multi-Conductor | Gray | ||
Prysmian Group | 19 | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 11.91 mm | 0.469 " | ASTM B-33 | 15.24 m 304.8 m | 50 ft 1000 ft | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | 18 AWG | 300 VDC | Communication Control | Multi-Conductor | Gray | 100 ft | 30.5 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 2 | $ 513.53 | |
| 2 | $ 513.53 | |||
| 7 | $ 272.42 | |||
| 7 | $ 272.42 | |||
| 1000 | $ 3.92 | |||
| 1000 | $ 3.92 | |||
| 55000 | $ 272.42 | |||
| 55000 | $ 3.92 | |||
| 55000 | $ 513.53 | |||
| Spool | 1000 | $ 3.77 | ||
| 1000 | $ 3.77 | |||
| 2000 | $ 3.58 | |||
| 2000 | $ 3.58 | |||
Description
General part information
C2424 Series

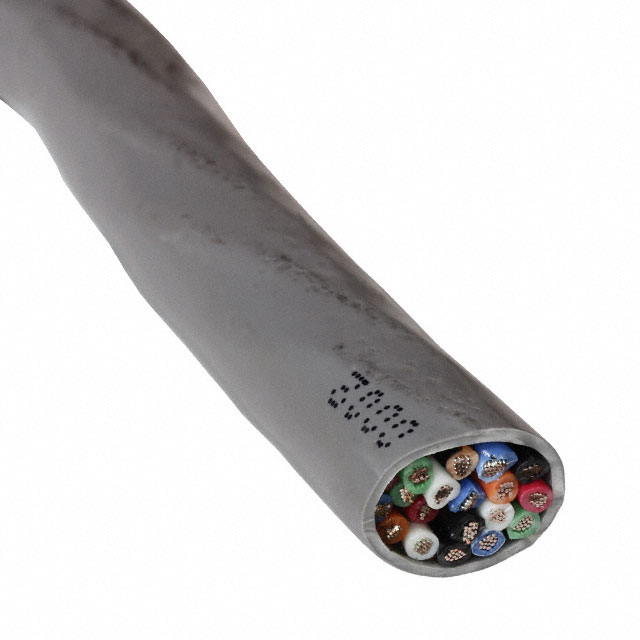

19 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
