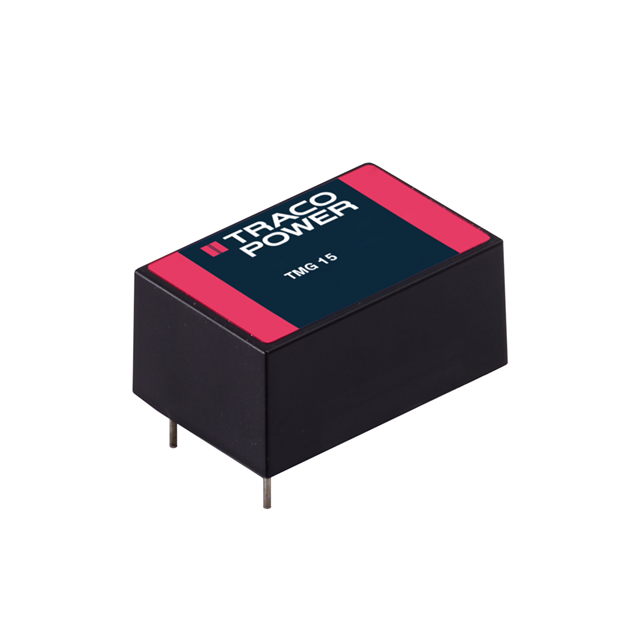

TMG 15105
Power Supplies - Board Mount

TMG 15105

Active
Traco Power

AC/DC POWER MODULES 15W 5V 3A ENCAPSULATED AC/DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEU Declaration of Conformity (PDF)TMG 15105 Datasheet+1
TMG 15105
Power Supplies - Board Mount

TMG 15105

Active
Traco Power

AC/DC POWER MODULES 15W 5V 3A ENCAPSULATED AC/DC

Deep-Dive with AI

DocumentsEU Declaration of Conformity (PDF)TMG 15105 Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationTMG 15105
ApplicationsITE (Commercial)
Approval AgencyCE, cURus
Current - Output (Max) [Max]2.7 A
Efficiency80 %
FeaturesUniversal Input
Line Regulation0.5 %
Load Regulation±1%
Mounting TypeThrough Hole
Number of Outputs1
Package / Case4-DIP Module
Power (Watts)14 W
Size / Dimension [x]1.62 "
Size / Dimension [x]41.2 mm
Size / Dimension [y]27.2 mm
Size / Dimension [y]1.07 in
Size / Dimension [z]19.1 mm
Size / Dimension [z]0.75 "
TypeEnclosed
Voltage - Input [Max]264 VAC, 370 VDC
Voltage - Input [Min]120 VDC, 90 VAC
Voltage - Output 15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 43.30
10$ 37.89
25$ 36.62
50$ 35.70
100$ 34.79
250$ 33.63
500$ 29.79
N/A 12$ 43.30
MouserN/A 1$ 43.30
10$ 39.11
25$ 35.87
50$ 34.58
100$ 33.08
250$ 32.49

Description

General part information

TMG Series

AC/DC Power Modules
