Technical Specifications
Parameters and characteristics for this part
| Specification | 892-025-524-103 |
|---|---|
| Card Thickness [Max] | 0.07 in, 1.78 mm |
| Card Thickness [Min] | 1.37 mm, 0.054 in |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.25 Ám |
| Contact Finish Thickness | 10 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Floating Bobbin |
| Flange Feature [diameter] | 0.116 " |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 25 |
| Number of Positions/Bay/Row | 25 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 C |
| Pitch | 0.1 " |
| Pitch | 2.54 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
...
| Part | Termination Rows | Material - Insulation | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Positions/Bay/Row | Read Out | Card Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Mounting Type | Number of Rows | Contact Material | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Flange Feature | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Wire Wrap | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 25 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount | 25 | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Wire Wrap | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | 25 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | 25 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Right Angle Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 25 | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Right Angle Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 25 | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Right Angle Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 25 | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Right Angle Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 25 | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 25 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Wire Wrap | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-025 Series

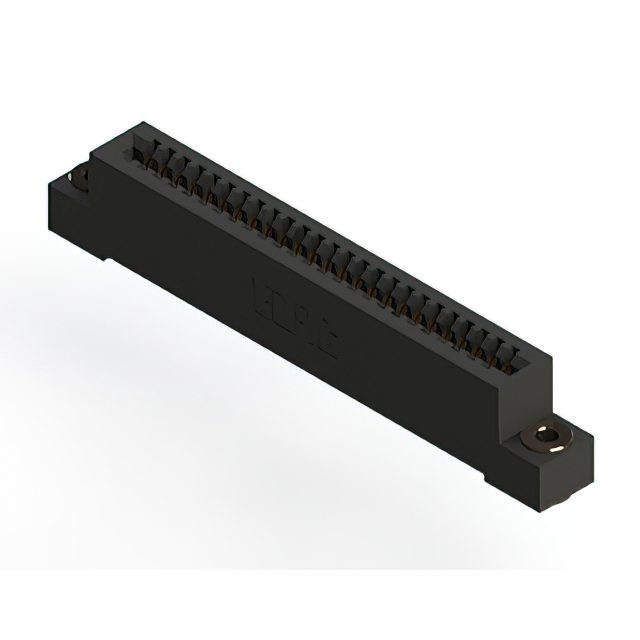

25 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
