892-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

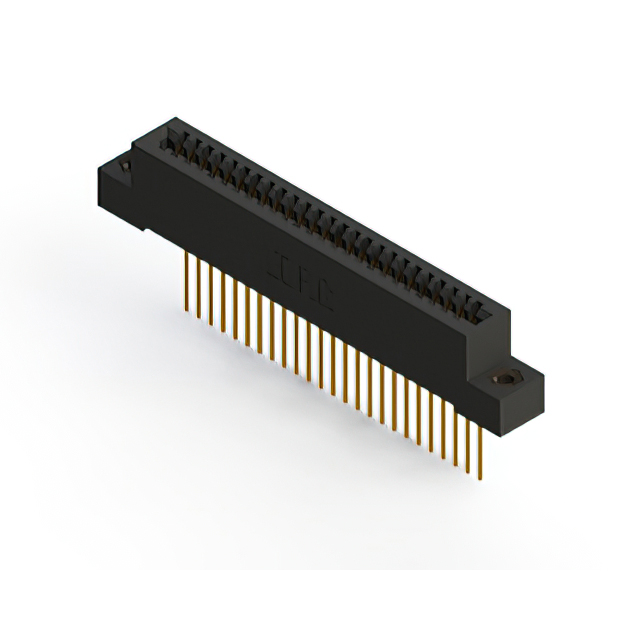

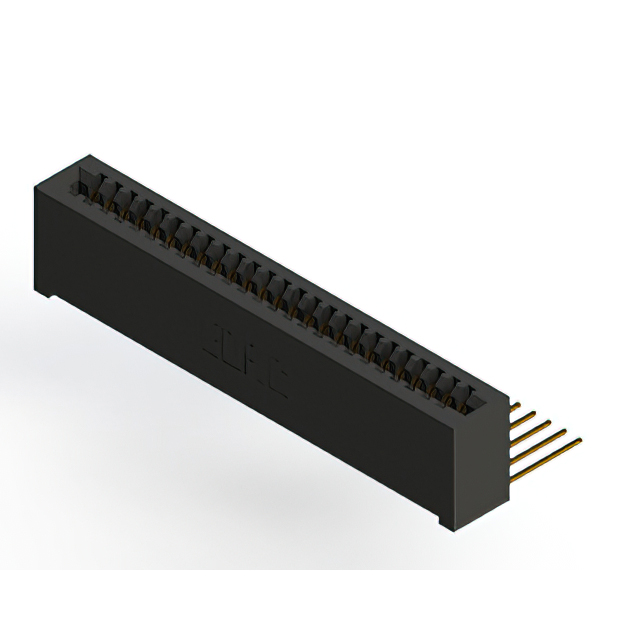

CONN EDGE SINGLE FML 25POS 0.100
| Part | Termination Rows | Material - Insulation | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Positions/Bay/Row | Read Out | Card Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Mounting Type | Number of Rows | Contact Material | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Flange Feature | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Wire Wrap | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 25 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount | 25 | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Wire Wrap | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | 25 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | 25 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Right Angle Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 25 | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Right Angle Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 25 | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Right Angle Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 25 | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Right Angle Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 25 | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Solder | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 25 | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | 0.25 Ám | 10 Áin | Wire Wrap | 25 | Single | Non Specified - Single Edge | Gold | 125 °C | -40 C | Black | Through Hole | 1 | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | 25 |
