Cables, Wires

C2409A.38.10

Active

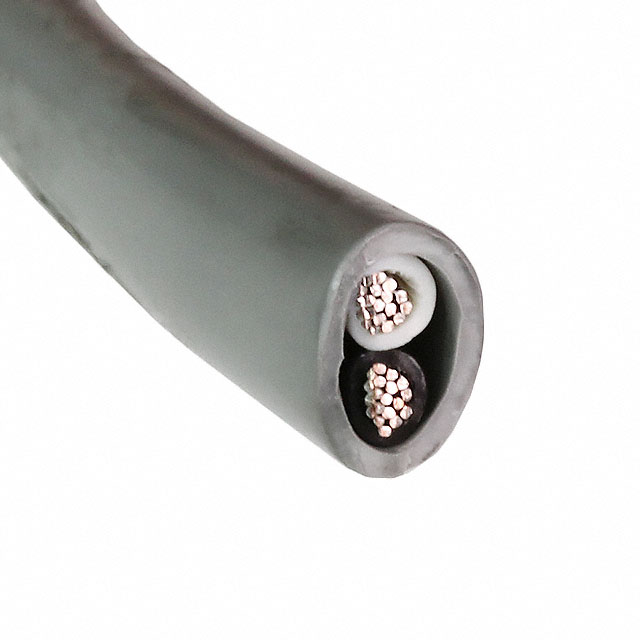

CABLE 2COND 14AWG GRAY 500'

Search across all available documentation for this part.

Cables, Wires

Active

CABLE 2COND 14AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C2409A.38.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0147 in
Jacket (Insulation) Diameter [diameter]	0.335 in
Jacket (Insulation) Diameter [diameter]	8.51 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.813 mm
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Gray
Length	152.4 m
Length	500 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 ░C
Usage	Communication, Control
Voltage	300 VDC
Wire Gauge	14.5 AWG

Part	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Material	Conductor Insulation	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Voltage	Cable Type
Prysmian Group C2409A.41.10	Gray	14.5 AWG	8.28 mm	0.326 "	100 ft	30.5 m	Copper Tinned	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	19	0.0147 in	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Communication Control	0.813 mm	0.032 in	80 °C	-20 ░C	2	600 V	Multi-Conductor
Prysmian Group C2409A.38.10	Gray	14.5 AWG	8.51 mm	0.335 in			Copper Tinned	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	19	0.0147 in	152.4 m	500 ft	Communication Control	0.813 mm	0.032 in	90 °C	-20 ░C	2	300 VDC	Multi-Conductor
Prysmian Group C2409A.41.10	Gray	14.5 AWG	8.28 mm	0.326 "	100 ft	30.5 m	Copper Tinned	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	19	0.0147 in	15.24 m 304.8 m	50 ft 1000 ft	Communication Control	0.813 mm	0.032 in	80 °C	-20 ░C	2	600 V	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

General part information

2 Conductor Multi-Conductor Cable Gray 14 AWG 500.0' (152.4m)
