Power Supplies - Board Mount

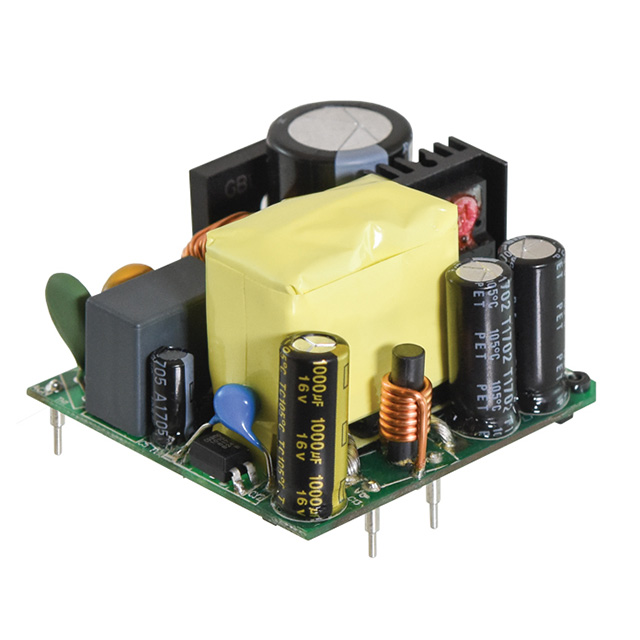

VOF-S60B-5

Active

CUI Inc.

AC/DC CONVERTER 5V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Power Supplies - Board Mount

VOF-S60B-5

Active

CUI Inc.

AC/DC CONVERTER 5V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-S60B-5

Applications	ITE (Commercial)
Approval Agency	TUV, IEC, UL, CB Scheme, EN, SIQ
Current - Output (Max) [Max]	8 A
Efficiency	86 %
Features	Universal Input
Line Regulation	1 %
Load Regulation	±1%
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	35 mm
Size / Dimension [z]	1.38 in
Standard Number	61000-6-3, 61000-3-2, 55032 Class B, 62368-1, 61000-6-1, 61000-6-4, 61000-3-3, 61000-6-2, 60950-1
Type	Open Frame
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	120 VDC, 90 VAC
Voltage - Output 1	5 V

VOF-S60 Series

Part	Line Regulation	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Type	Efficiency	Standard Number	Voltage - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Package / Case	Applications	Load Regulation	Power (Watts)	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output 1
CUI Inc. VOF-S60B-48-PB	1 %	CB Scheme EN IEC SIQ TUV UL	90 VAC 120 VDC	264 VAC 370 VDC	Open Frame	90 %	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1	48 V	1	2 in	50.8 mm	35 mm	1.38 in	50.8 mm	2 in	1.25 A	6-DIP Module	ITE (Commercial)	±1%	60 W	Through Hole	Universal Input	-30 °C	70 °C
CUI Inc. VOF-S60B-15	1 %	CB Scheme EN IEC SIQ TUV UL	90 VAC 120 VDC	264 VAC 370 VDC	Open Frame	88 %	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1	15 V	1	2 in	50.8 mm	35 mm	1.38 in	50.8 mm	2 in	4 A	6-DIP Module	ITE (Commercial)	±1%	60 W	Through Hole	Universal Input	-30 °C	70 °C
CUI Inc. VOF-S60B-5	1 %	CB Scheme EN IEC SIQ TUV UL	90 VAC 120 VDC	264 VAC 370 VDC	Open Frame	86 %	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1	5 V	1	2 in	50.8 mm	35 mm	1.38 in	50.8 mm	2 in	8 A	6-DIP Module	ITE (Commercial)	±1%	40 W	Through Hole	Universal Input	-30 °C	70 °C
CUI Inc. VOF-S60B-48	1 %	CB Scheme EN IEC SIQ TUV UL	90 VAC 120 VDC	264 VAC 370 VDC	Open Frame	90 %	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1	48 V	1	2 in	50.8 mm	35 mm	1.38 in	50.8 mm	2 in	1.25 A	6-DIP Module	ITE (Commercial)	±1%	60 W	Through Hole	Universal Input	-30 °C	70 °C
CUI Inc. VOF-S60B-24	1 %	CB Scheme EN IEC SIQ TUV UL	90 VAC 120 VDC	264 VAC 370 VDC	Open Frame	89 %	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1	24 V	1	2 in	50.8 mm	35 mm	1.38 in	50.8 mm	2 in	2.5 A	6-DIP Module	ITE (Commercial)	±1%	60 W	Through Hole	Universal Input	-30 °C	70 °C
CUI Inc. VOF-S60C-15		CB Scheme EN IEC SIQ TUV UL	90 VAC 120 VDC	264 VAC 370 VDC	Open Frame	88 %	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1	15 V	1	2 in	68.6 mm	28.6 mm	1.13 "	50.8 mm	2.7 in			ITE (Commercial)		60 W	Chassis Mount	Universal Input	-30 °C	70 °C	3000 V	4 A
CUI Inc. VOF-S60C-48		CB Scheme EN IEC SIQ TUV UL	90 VAC 120 VDC	264 VAC 370 VDC	Open Frame	90 %	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1	48 V	1	2 in	68.6 mm	28.6 mm	1.13 "	50.8 mm	2.7 in			ITE (Commercial)		60 W	Chassis Mount	Universal Input	-30 °C	70 °C	3000 V	1.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 35.62
		5	$ 33.93
		10	$ 33.22
		25	$ 32.31
		80	$ 31.19
		160	$ 30.55
		320	$ 29.91
	N/A	10	$ 35.62

Description

General part information

VOF-S60 Series

Open Frame AC DC Converters 1 Output 5V 8A 90 ~ 264 VAC, 120 ~ 370 VDC Input
