Technical Specifications
Parameters and characteristics for this part
| Specification | VOF-S60C-15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, IEC, UL, CB Scheme, EN, SIQ |
| Current - Output 1 | 4 A |
| Efficiency | 88 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 68.6 mm |
| Size / Dimension [x] | 2.7 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 28.6 mm |
| Size / Dimension [z] | 1.13 " |
| Standard Number | 61000-6-3, 61000-3-2, 55032 Class B, 62368-1, 61000-6-1, 61000-6-4, 61000-3-3, 61000-6-2, 60950-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 120 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
| Part | Line Regulation | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Type | Efficiency | Standard Number | Voltage - Output 1 | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Current - Output (Max) [Max] | Package / Case | Applications | Load Regulation | Power (Watts) | Mounting Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 % | CB Scheme EN IEC SIQ TUV UL | 90 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | 90 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | 48 V | 1 | 2 in | 50.8 mm | 35 mm | 1.38 in | 50.8 mm | 2 in | 1.25 A | 6-DIP Module | ITE (Commercial) | ±1% | 60 W | Through Hole | Universal Input | -30 °C | 70 °C | ||
CUI Inc. | 1 % | CB Scheme EN IEC SIQ TUV UL | 90 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | 88 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | 15 V | 1 | 2 in | 50.8 mm | 35 mm | 1.38 in | 50.8 mm | 2 in | 4 A | 6-DIP Module | ITE (Commercial) | ±1% | 60 W | Through Hole | Universal Input | -30 °C | 70 °C | ||
CUI Inc. | 1 % | CB Scheme EN IEC SIQ TUV UL | 90 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | 86 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | 5 V | 1 | 2 in | 50.8 mm | 35 mm | 1.38 in | 50.8 mm | 2 in | 8 A | 6-DIP Module | ITE (Commercial) | ±1% | 40 W | Through Hole | Universal Input | -30 °C | 70 °C | ||
CUI Inc. | 1 % | CB Scheme EN IEC SIQ TUV UL | 90 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | 90 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | 48 V | 1 | 2 in | 50.8 mm | 35 mm | 1.38 in | 50.8 mm | 2 in | 1.25 A | 6-DIP Module | ITE (Commercial) | ±1% | 60 W | Through Hole | Universal Input | -30 °C | 70 °C | ||
CUI Inc. | 1 % | CB Scheme EN IEC SIQ TUV UL | 90 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | 89 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | 24 V | 1 | 2 in | 50.8 mm | 35 mm | 1.38 in | 50.8 mm | 2 in | 2.5 A | 6-DIP Module | ITE (Commercial) | ±1% | 60 W | Through Hole | Universal Input | -30 °C | 70 °C | ||
CUI Inc. | CB Scheme EN IEC SIQ TUV UL | 90 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | 88 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | 15 V | 1 | 2 in | 68.6 mm | 28.6 mm | 1.13 " | 50.8 mm | 2.7 in | ITE (Commercial) | 60 W | Chassis Mount | Universal Input | -30 °C | 70 °C | 3000 V | 4 A | ||||
 CUI Inc. | CB Scheme EN IEC SIQ TUV UL | 90 VAC 120 VDC | 264 VAC 370 VDC | Open Frame | 90 % | 55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1 | 48 V | 1 | 2 in | 68.6 mm | 28.6 mm | 1.13 " | 50.8 mm | 2.7 in | ITE (Commercial) | 60 W | Chassis Mount | Universal Input | -30 °C | 70 °C | 3000 V | 1.25 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 26 | $ 45.54 | |
| N/A | 0 | $ 46.11 | ||
Description
General part information

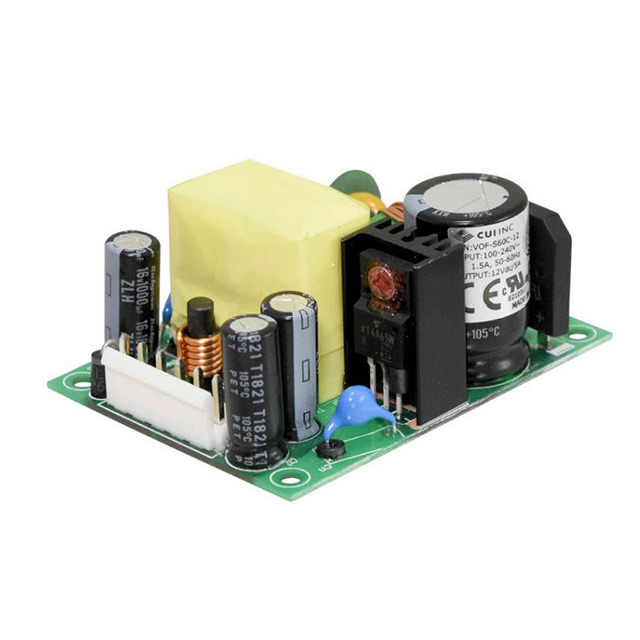

VOF-S60 Series
Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC, 120 ~ 370 VDC Input
