Power Supplies - External/Internal (Off-Board)

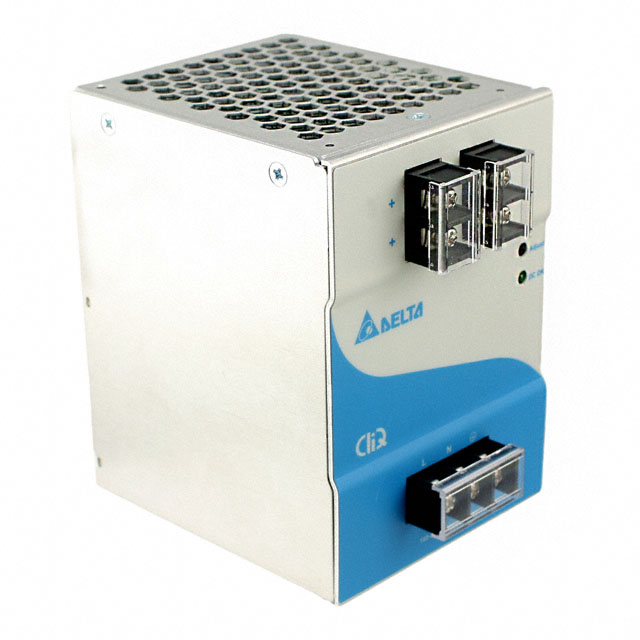

DRP024V240W1AA
ObsoleteDelta Electronics
AC/DC POWER SUPPLY SINGLE-OUT 24V 10A 240W CARTON
Deep-Dive with AI
Search across all available documentation for this part.
Power Supplies - External/Internal (Off-Board)
DRP024V240W1AA
ObsoleteDelta Electronics
AC/DC POWER SUPPLY SINGLE-OUT 24V 10A 240W CARTON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRP024V240W1AA |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 84 % |
| Features | Load Sharing, Adjustable Output, Universal Input |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 240 Watts |
| Size / Dimension [x] | 118.5 mm |
| Size / Dimension [x] | 4.67 " |
| Size / Dimension [y] | 3.35 in |
| Size / Dimension [y] | 85 mm |
| Size / Dimension [z] | 4.76 in |
| Size / Dimension [z] | 121 mm |
| Standard Number | 50581, 61000-6-2, 55024, 213, 60079-15, 62368-1, F47, 55032, 508, 107.1-01, 61000-3-2, 60950-1, 55011, 61000-6-1, 61204-3 |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Isolation | Applications | Number of Outputs | Voltage - Output 1 | Efficiency | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Input Type | Features | Current - Output (Max) [Max] | Standard Number | Power (Watts) | Approval Agency | Current - Output (Max) | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 75 °C | -20 °C | 3.35 in | 4.76 in | 121 mm | 118.5 mm | 4.67 " | 85 mm | 4000 V | ITE (Commercial) | 1 | 24 V | 84 % | 264 VAC | 85 VAC | AC | Adjustable Output Load Sharing Universal Input | 10 A | 107.1-01 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-6-1 61000-6-2 61204-3 62368-1 F47 | 240 Watts | |||||
 Delta Electronics | 75 °C | -25 °C | 4.67 in | 4.76 in | 121 mm | 144 mm | 5.76 " | 118.6 mm | 4000 V | ITE (Commercial) | 1 | 24 V | 92 % | 264 VAC | 85 VAC | AC | Adjustable Output IP20 Load Sharing PFC Universal Input | 20 A | 107.1-01 1310 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 | 480 W | ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL | ||||
 Delta Electronics | 85 °C | -20 °C | 1.97 in | 4.76 in | 121 mm | 123.7 mm | 4.87 in | 50 mm | 4000 V | ITE (Commercial) | 1 | 24 V | 90 % | 264 VAC | 85 VAC | AC | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1 | 120 W | CB Scheme CE CSA EAC EN SIQ UL | 5 A | ||||
 Delta Electronics | 80 ¯C | -25 °C | 4.62 in | 4.76 in | 121 mm | 140 mm | 5.52 " | 117.3 mm | 4000 V | Hazardous Locations ITE (Commercial) | 1 | 24 V | 91 % | 600 VAC | 320 VAC | AC | Adjustable Output IP20 Load Sharing PFC Universal Input | 20 A | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 | 480 W | ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL | ||||
 Delta Electronics | 75 °C | -20 °C | 1.26 in | 4.45 " | 113 mm | 120.6 mm | 4.75 in | 32 mm | 4000 V | ITE (Commercial) | 1 | 24 V | 87 % | 264 VAC | 85 VAC | AC | Adjustable Output Load Sharing Universal Input | 2.5 A | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1 | 60 W | CB Scheme CE CSA EAC EN SIQ UL | ||||
 Delta Electronics | 80 ¯C | -25 °C | 4000 V | ITE (Commercial) | 1 | 24 V | 88 % | 600 VAC | 320 VAC | AC | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1 | 120 W | ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL | 5 A | ||||||||||
 Delta Electronics | 75 °C | -20 °C | 6.3 " | 4.76 in | 121 mm | 118.5 mm | 4.67 " | 160 mm | 4000 V | ITE (Commercial) | 1 | 24 V | 88 % | 264 VAC | 85 VAC | AC | Adjustable Output Load Sharing Universal Input | 20 A | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1 F47 | 480 W | |||||
 Delta Electronics | 85 °C | -25 °C | 4000 V | ITE (Commercial) | 1 | 24 V | 88 % | 500 VAC | 400 VAC | AC | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1 | 120 W | CB Scheme CE CSA EAC EN SIQ UL | 5 A | ||||||||||
Delta Electronics | 80 ¯C | -25 °C | 4000 V | ITE (Commercial) | 1 | 24 V | 86 % | 600 VAC | 320 VAC | AC | Adjustable Output IP20 Load Sharing PFC Universal Input | 2.5 A | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1 | 60 W | CB Scheme CE CSA EAC EN SIQ UL | ||||||||||
 Delta Electronics | 75 °C | -20 °C | 4.76 in | 4.72 in | 1.26 in | 4000 V | ITE (Commercial) | 1 | 24 V | 87 % | 264 VAC | 85 VAC | AC | Adjustable Output Load Sharing Universal Input | 2.5 A | 107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-6-1 61000-6-2 61204-3 62368-1 | 60 W | 121 mm | 32 mm | 120 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 106.98 | |
| 10 | $ 94.03 | |||
| 25 | $ 89.32 | |||
| 50 | $ 85.91 | |||
| 100 | $ 82.64 | |||
| N/A | 0 | $ 0.00 | ||
Description
General part information
DRP024 Series
AC/DC POWER SUPPLY SINGLE-OUT 24V 10A 240W CARTON
