DRP024 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 24V 10A 240W CARTON

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Applications	Number of Outputs	Voltage - Output 1	Efficiency	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Input Type	Features	Current - Output (Max) [Max]	Standard Number	Power (Watts)	Approval Agency	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Delta Electronics DRP024V240W1AA	75 °C	-20 °C	3.35 in	4.76 in	121 mm	118.5 mm	4.67 "	85 mm	4000 V	ITE (Commercial)	1	24 V	84 %	264 VAC	85 VAC	AC	Adjustable Output Load Sharing Universal Input	10 A	107.1-01 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-6-1 61000-6-2 61204-3 62368-1 F47	240 Watts
Delta Electronics DRP024V480W1BA	75 °C	-25 °C	4.67 in	4.76 in	121 mm	144 mm	5.76 "	118.6 mm	4000 V	ITE (Commercial)	1	24 V	92 %	264 VAC	85 VAC	AC	Adjustable Output IP20 Load Sharing PFC Universal Input	20 A	107.1-01 1310 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3	480 W	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL
Delta Electronics DRP024V120W1BN	85 °C	-20 °C	1.97 in	4.76 in	121 mm	123.7 mm	4.87 in	50 mm	4000 V	ITE (Commercial)	1	24 V	90 %	264 VAC	85 VAC	AC	Adjustable Output IP20 Load Sharing PFC Universal Input		107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	120 W	CB Scheme CE CSA EAC EN SIQ UL	5 A
Delta Electronics DRP024V480W3BA	80 ¯C	-25 °C	4.62 in	4.76 in	121 mm	140 mm	5.52 "	117.3 mm	4000 V	Hazardous Locations ITE (Commercial)	1	24 V	91 %	600 VAC	320 VAC	AC	Adjustable Output IP20 Load Sharing PFC Universal Input	20 A	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3	480 W	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL

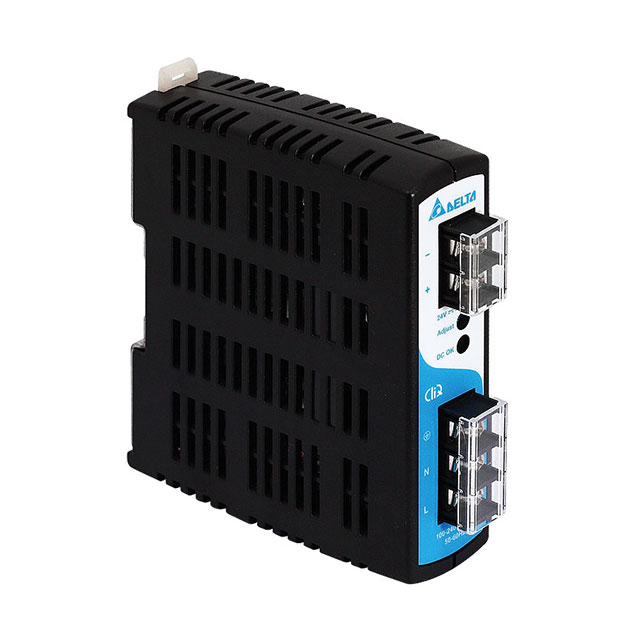

Delta Electronics DRP024V060W1AZ	75 °C	-20 °C	1.26 in	4.45 "	113 mm	120.6 mm	4.75 in	32 mm	4000 V	ITE (Commercial)	1	24 V	87 %	264 VAC	85 VAC	AC	Adjustable Output Load Sharing Universal Input	2.5 A	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 62368-1	60 W	CB Scheme CE CSA EAC EN SIQ UL
Delta Electronics DRP024V120W3BA	80 ¯C	-25 °C							4000 V	ITE (Commercial)	1	24 V	88 %	600 VAC	320 VAC	AC	Adjustable Output IP20 Load Sharing PFC Universal Input		107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	120 W	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL	5 A
Delta Electronics DRP024V480W1AA	75 °C	-20 °C	6.3 "	4.76 in	121 mm	118.5 mm	4.67 "	160 mm	4000 V	ITE (Commercial)	1	24 V	88 %	264 VAC	85 VAC	AC	Adjustable Output Load Sharing Universal Input	20 A	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1 F47	480 W
Delta Electronics DRP024V120W3BN	85 °C	-25 °C							4000 V	ITE (Commercial)	1	24 V	88 %	500 VAC	400 VAC	AC	Adjustable Output IP20 Load Sharing PFC Universal Input		107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	120 W	CB Scheme CE CSA EAC EN SIQ UL	5 A
Delta Electronics DRP024V060W3BN	80 ¯C	-25 °C							4000 V	ITE (Commercial)	1	24 V	86 %	600 VAC	320 VAC	AC	Adjustable Output IP20 Load Sharing PFC Universal Input	2.5 A	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	60 W	CB Scheme CE CSA EAC EN SIQ UL
Delta Electronics DRP024V060W1AA	75 °C	-20 °C			4.76 in	4.72 in		1.26 in	4000 V	ITE (Commercial)	1	24 V	87 %	264 VAC	85 VAC	AC	Adjustable Output Load Sharing Universal Input	2.5 A	107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-6-1 61000-6-2 61204-3 62368-1	60 W			121 mm	32 mm	120 mm
