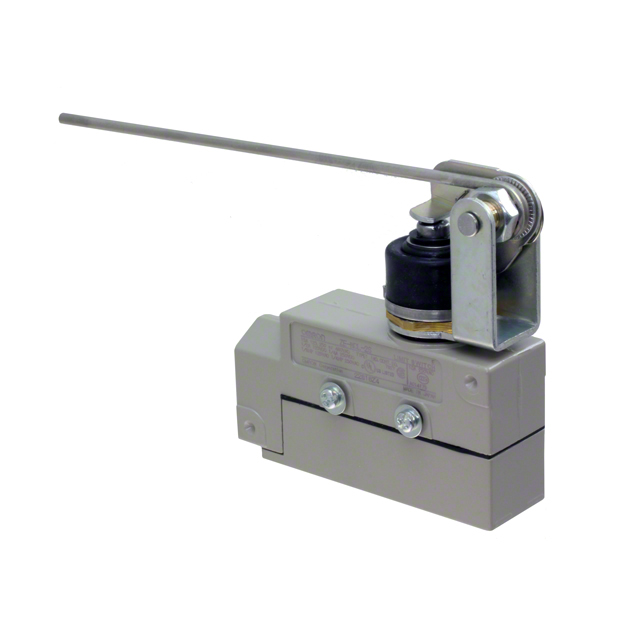

ZV-NA277-2S

Active

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Switches

Active

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ZV-NA277-2S

Actuator Type	Lever, Roller
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.016 in
Differential Travel	0.4 mm
Electrical Life	500000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	640 gf
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-10 °C
Overtravel [custom]	0.235 "
Overtravel [custom]	6 mm
Pretravel	5 mm
Pretravel	0.197 "
Release Force	230 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Operating Force	Overtravel [custom]	Overtravel [custom]	Ingress Protection	Differential Travel	Differential Travel	Electrical Life	Circuit	Voltage Rating - DC	Mounting Type	Mechanical Life	Voltage Rating - AC	Termination Style	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Switch Function	Actuator Type	Current Rating (Amps)	Operating Position	Operating Position	Overtravel	Overtravel	Differential Travel
Omron Automation and Safety ZV-NA2-2	640 gf	0.235 "	6 mm	IP65 - Dust Tight Water Resistant	0.016 in	0.4 mm	500000 Cycles	SPDT	125 VDC	Chassis Mount	10000000 Cycles	125 V	Screw Terminal	230 gf	-10 °C	80 °C	5 mm	0.197 "	On-Mom	Lever Roller	15 A 500 mA
Omron Automation and Safety ZV-NA277-2S	640 gf	0.235 "	6 mm	IP65 - Dust Tight Water Resistant	0.016 in	0.4 mm	500000 Cycles	SPDT	125 VDC	Chassis Mount	10000000 Cycles	125 V	Screw Terminal	230 gf	-10 °C	80 °C	5 mm	0.197 "	On-Mom	Lever Roller	15 A 500 mA
Omron Automation and Safety ZV-N-2S	800 gf			IP65 - Dust Tight Water Resistant	0.004 in	0.1 mm	500000 Cycles	SPDT	125 VDC	Chassis Mount	10000000 Cycles	125 V	Screw Terminal	240 gf	-10 °C	80 °C	2 mm	0.08 in	On-Mom	Round (Pin Plunger)	15 A 500 mA	2.811 in	71.4 mm	0.197 "	5 mm
Omron Automation and Safety ZV-N21-2	0.5 kgf	0.138 "	3.5 mm	IP65 - Dust Tight Water Resistant		0.005 in	500000 Cycles	SPDT	125 VDC	Chassis Mount	10000000 Cycles	125 V	Screw Terminal		-10 °C	80 °C	1 mm	0.04 in	On-Mom	Cross Roller Plunger	15 A 500 mA	2.961 in	75.2 mm			0.13 mm
