ZV-N Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Operating Force	Overtravel [custom]	Overtravel [custom]	Ingress Protection	Differential Travel	Differential Travel	Electrical Life	Circuit	Voltage Rating - DC	Mounting Type	Mechanical Life	Voltage Rating - AC	Termination Style	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Switch Function	Actuator Type	Current Rating (Amps)	Operating Position	Operating Position	Overtravel	Overtravel	Differential Travel
Omron Automation and Safety ZV-NA2-2	640 gf	0.235 "	6 mm	IP65 - Dust Tight Water Resistant	0.016 in	0.4 mm	500000 Cycles	SPDT	125 VDC	Chassis Mount	10000000 Cycles	125 V	Screw Terminal	230 gf	-10 °C	80 °C	5 mm	0.197 "	On-Mom	Lever Roller	15 A 500 mA
Omron Automation and Safety ZV-NA277-2S	640 gf	0.235 "	6 mm	IP65 - Dust Tight Water Resistant	0.016 in	0.4 mm	500000 Cycles	SPDT	125 VDC	Chassis Mount	10000000 Cycles	125 V	Screw Terminal	230 gf	-10 °C	80 °C	5 mm	0.197 "	On-Mom	Lever Roller	15 A 500 mA
Omron Automation and Safety ZV-N-2S	800 gf			IP65 - Dust Tight Water Resistant	0.004 in	0.1 mm	500000 Cycles	SPDT	125 VDC	Chassis Mount	10000000 Cycles	125 V	Screw Terminal	240 gf	-10 °C	80 °C	2 mm	0.08 in	On-Mom	Round (Pin Plunger)	15 A 500 mA	2.811 in	71.4 mm	0.197 "	5 mm

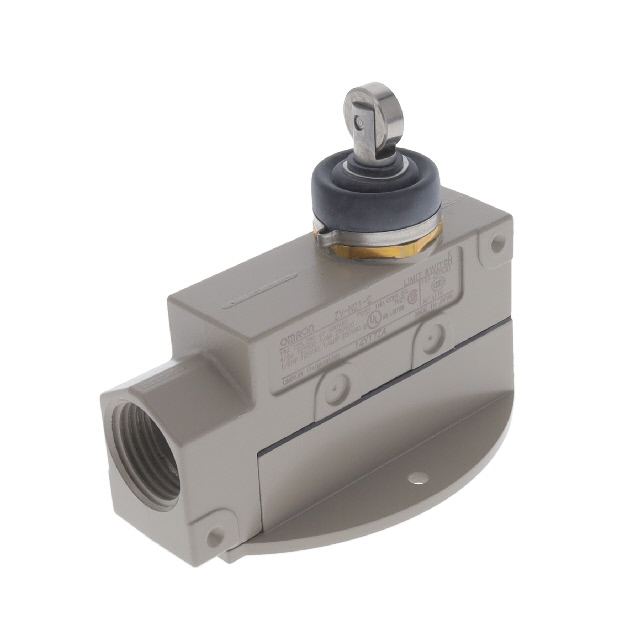

Omron Automation and Safety ZV-N21-2	0.5 kgf	0.138 "	3.5 mm	IP65 - Dust Tight Water Resistant		0.005 in	500000 Cycles	SPDT	125 VDC	Chassis Mount	10000000 Cycles	125 V	Screw Terminal		-10 °C	80 °C	1 mm	0.04 in	On-Mom	Cross Roller Plunger	15 A 500 mA	2.961 in	75.2 mm			0.13 mm
