Power Supplies - External/Internal (Off-Board)

VOF-85-15

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 85W

Deep-Dive with AI

Search across all available documentation for this part.

Power Supplies - External/Internal (Off-Board)

VOF-85-15

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 85W

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-85-15

Applications	ITE (Commercial)
Approval Agency	TUV, CB Scheme, EN, UL, FCC, IEC, SIQ
Current - Output 1	5.7 A
Efficiency	88 %
Features	Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	85 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 "
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	33.6 mm
Size / Dimension [z]	1.32 in
Standard Number	60950-1, 61204-3, 61000-6-3, 55024, 61000-3-3, 61000-3-2, 61000-6-1
Type	Open Frame
Voltage - Input [Max]	277 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

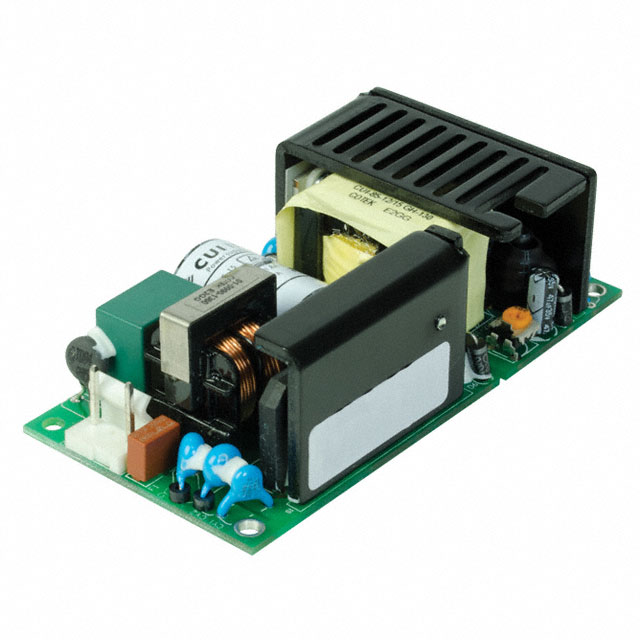

VOF-85 Series

Part	Features	Approval Agency	Applications	Voltage - Output 1	Current - Output 1	Power (Watts)	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Standard Number	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Efficiency
CUI Inc. VOF-85B-24	Universal Input	CB Scheme CE EN FCC IEC SIQ TUV UL	ITE (Commercial)	24 V	3.55 A	85 W	Open Frame	1.24 "	50.8 mm	101.6 mm	2 in	4 "	31.6 mm	Chassis Mount	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	70 °C	-20 °C	264 VAC	90 VAC	3000 V	89 %
CUI Inc. VOF-85-15	Adjustable Output Universal Input	CB Scheme EN FCC IEC SIQ TUV UL	ITE (Commercial)	15 V	5.7 A	85 W	Open Frame	1.32 in	50.8 mm	101.6 mm	2 in	4 "	33.6 mm	Chassis Mount	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	1	60 °C	-20 °C	277 VAC	90 VAC	3000 V	88 %
CUI Inc. VOF-85-5	Adjustable Output Universal Input	CB Scheme EN FCC IEC SIQ TUV UL	ITE (Commercial)	5 V	10.6 A	53 W	Open Frame	1.32 in	50.8 mm	101.6 mm	2 in	4 "	33.6 mm	Chassis Mount	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	1	60 °C	-20 °C	277 VAC	90 VAC	3000 V	78 %
CUI Inc. VOF-85B-12	Universal Input	CB Scheme CE EN FCC IEC SIQ TUV UL	ITE (Commercial)	12 V	7.1 A	85 W	Open Frame	1.24 "	50.8 mm	101.6 mm	2 in	4 "	31.6 mm	Chassis Mount	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	1	70 °C	-20 °C	264 VAC	90 VAC	3000 V	87 %
CUI Inc. VOF-85-12	Adjustable Output Universal Input	CB Scheme EN FCC IEC SIQ TUV UL	ITE (Commercial)	12 V	7.1 A	85 W	Open Frame	1.32 in	50.8 mm	101.6 mm	2 in	4 "	33.6 mm	Chassis Mount	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	1	60 °C	-20 °C	277 VAC	90 VAC	3000 V	86 %
CUI Inc. VOF-85-48	Adjustable Output Universal Input	CB Scheme EN FCC IEC SIQ TUV UL	ITE (Commercial)	48 V	1.8 A	85 W	Open Frame	1.32 in	50.8 mm	101.6 mm	2 in	4 "	33.6 mm	Chassis Mount	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	1	60 °C	-20 °C	277 VAC	90 VAC	3000 V	89 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

Description

General part information

VOF-85 Series

Open Frame AC DC Converters 1 Output 15V 90 ~ 277 VAC Input

Documents

Technical documentation and resources

No documents available
