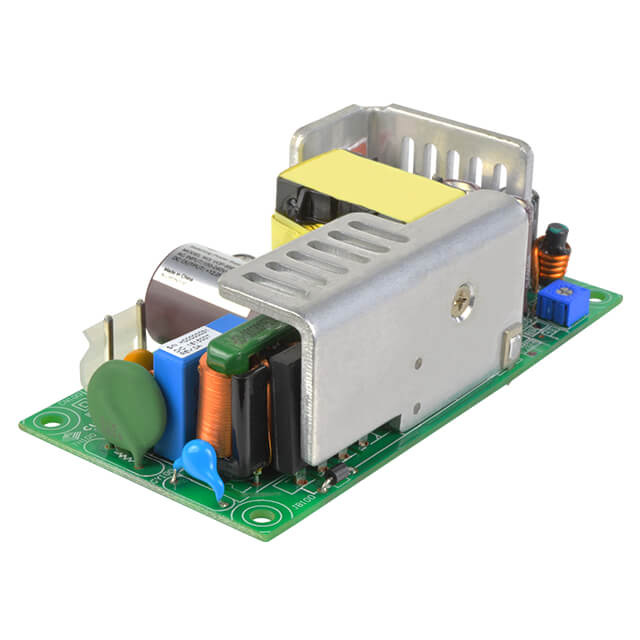

VOF-85 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 85W
| Part | Features | Approval Agency | Applications | Voltage - Output 1 | Current - Output 1 | Power (Watts) | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Standard Number | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Universal Input | CB Scheme CE EN FCC IEC SIQ TUV UL | ITE (Commercial) | 24 V | 3.55 A | 85 W | Open Frame | 1.24 " | 50.8 mm | 101.6 mm | 2 in | 4 " | 31.6 mm | Chassis Mount | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | 1 | 70 °C | -20 °C | 264 VAC | 90 VAC | 3000 V | 89 % |
 CUI Inc. | Adjustable Output Universal Input | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | 15 V | 5.7 A | 85 W | Open Frame | 1.32 in | 50.8 mm | 101.6 mm | 2 in | 4 " | 33.6 mm | Chassis Mount | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 1 | 60 °C | -20 °C | 277 VAC | 90 VAC | 3000 V | 88 % |
CUI Inc. | Adjustable Output Universal Input | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | 5 V | 10.6 A | 53 W | Open Frame | 1.32 in | 50.8 mm | 101.6 mm | 2 in | 4 " | 33.6 mm | Chassis Mount | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 1 | 60 °C | -20 °C | 277 VAC | 90 VAC | 3000 V | 78 % |
 CUI Inc. | Universal Input | CB Scheme CE EN FCC IEC SIQ TUV UL | ITE (Commercial) | 12 V | 7.1 A | 85 W | Open Frame | 1.24 " | 50.8 mm | 101.6 mm | 2 in | 4 " | 31.6 mm | Chassis Mount | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | 1 | 70 °C | -20 °C | 264 VAC | 90 VAC | 3000 V | 87 % |
 CUI Inc. | Adjustable Output Universal Input | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | 12 V | 7.1 A | 85 W | Open Frame | 1.32 in | 50.8 mm | 101.6 mm | 2 in | 4 " | 33.6 mm | Chassis Mount | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 1 | 60 °C | -20 °C | 277 VAC | 90 VAC | 3000 V | 86 % |
CUI Inc. | Adjustable Output Universal Input | CB Scheme EN FCC IEC SIQ TUV UL | ITE (Commercial) | 48 V | 1.8 A | 85 W | Open Frame | 1.32 in | 50.8 mm | 101.6 mm | 2 in | 4 " | 33.6 mm | Chassis Mount | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 | 1 | 60 °C | -20 °C | 277 VAC | 90 VAC | 3000 V | 89 % |
