Technical Specifications
Parameters and characteristics for this part
| Specification | CTHS15CIC04ARROW |
|---|---|

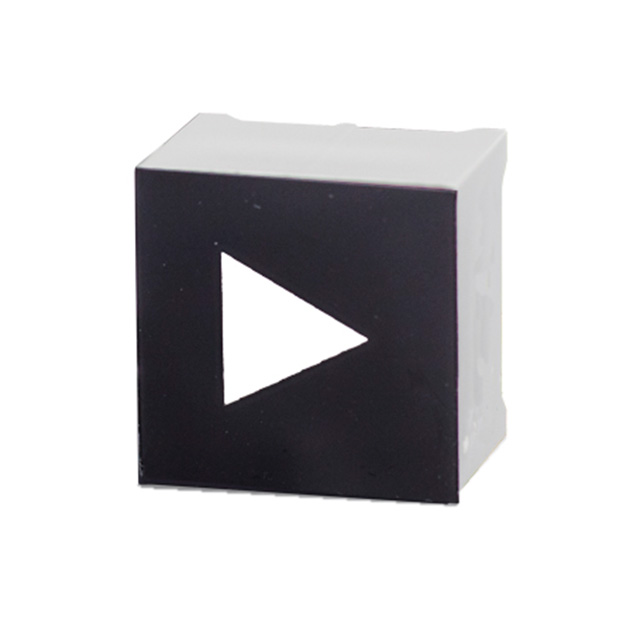

| Actuator Marking | Arrow, Right |
| Actuator Type | Button, Square |
| Color - Actuator/Cap | Black |
| Illumination Type, Color | LED, White |
| Illumination Voltage (Nominal) | 3.2 VDC |
| Mounting Type | Through Hole |
| Switch Function | Off-On |
| Termination Style | PC Pin |
| Type | Capacitive, Illuminated |
| Part | Actuator Type | Type | Illumination Voltage (Nominal) | Switch Function | Termination Style | Mounting Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Black | Alarm Symbol | LED Yellow |
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Black | Power Symbol | LED White |
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Clear | No Marking | Green LED |
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Black | Alarm Symbol | Blue LED |
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Black | Arrow Right | Blue LED |
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Black | Power Symbol | LED Red |
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Clear | No Marking | Blue LED |
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Black | Alarm Symbol | Green LED |
Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Black | Arrow Right | LED White |
 Visual Communications Company - VCC | Button Square | Capacitive Illuminated | 3.2 VDC | Off-On | PC Pin | Through Hole | Black | Power Symbol | LED Yellow |
