CTHS15 Series

Manufacturer: Visual Communications Company - VCC

Catalog

SWITCH PUSH CAPACITIVE ILLUM SQ

Part	Actuator Type	Type	Illumination Voltage (Nominal)	Switch Function	Termination Style	Mounting Type	Color - Actuator/Cap	Actuator Marking	Illumination Type, Color
Visual Communications Company - VCC CTHS15CIC07ALARM	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Black	Alarm Symbol	LED Yellow
Visual Communications Company - VCC CTHS15CIC04ONOFF	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Black	Power Symbol	LED White
Visual Communications Company - VCC CTHS15CIC05	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Clear	No Marking	Green LED

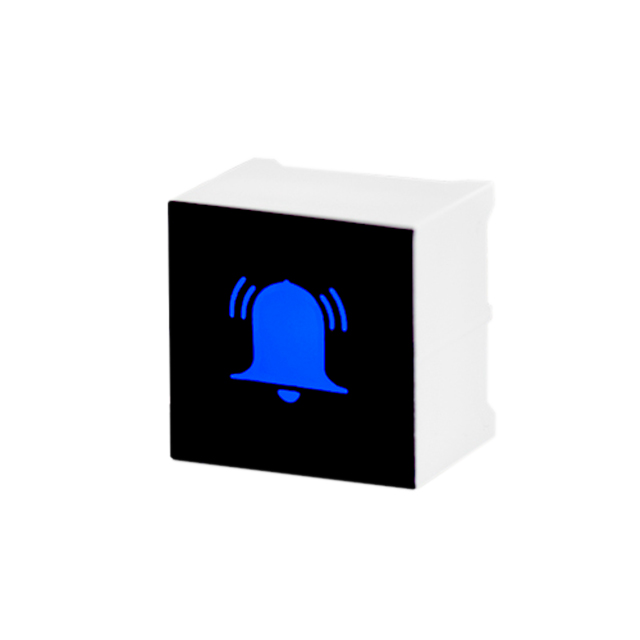

Visual Communications Company - VCC CTHS15CIC06ALARM	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Black	Alarm Symbol	Blue LED
Visual Communications Company - VCC CTHS15CIC06ARROW	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Black	Arrow Right	Blue LED
Visual Communications Company - VCC CTHS15CIC01ONOFF	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Black	Power Symbol	LED Red
Visual Communications Company - VCC CTHS15CIC06	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Clear	No Marking	Blue LED

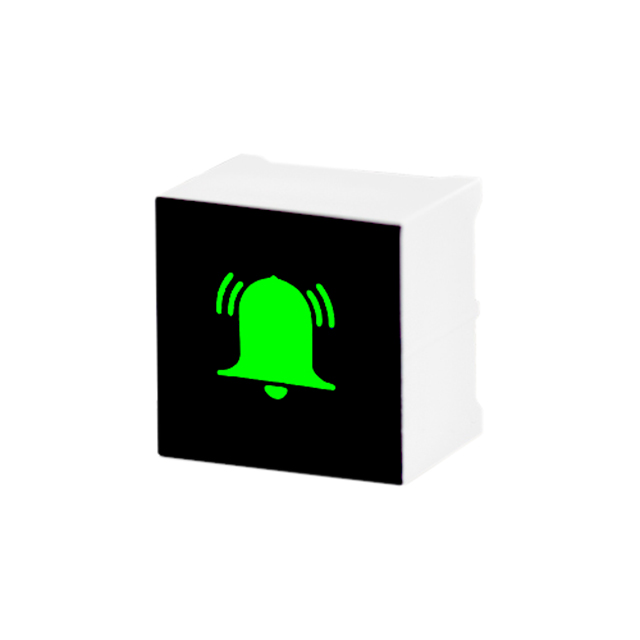

Visual Communications Company - VCC CTHS15CIC05ALARM	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Black	Alarm Symbol	Green LED
Visual Communications Company - VCC CTHS15CIC04ARROW	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Black	Arrow Right	LED White
Visual Communications Company - VCC CTHS15CIC07ONOFF	Button Square	Capacitive Illuminated	3.2 VDC	Off-On	PC Pin	Through Hole	Black	Power Symbol	LED Yellow
