H12WD Series

Relays

H12WD4825PGH

Active

SOLID STATE RELAYS - SSRS SSR RELAY, PANEL MOUNT, IP00, 660VAC/25A, DC IN, ZERO CROSS, IOP, LED, TP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCE Declaration of Conformity H12WD4825PGH | Datasheet

H12WD Series

Relays

H12WD4825PGH

Active

SOLID STATE RELAYS - SSRS SSR RELAY, PANEL MOUNT, IP00, 660VAC/25A, DC IN, ZERO CROSS, IOP, LED, TP

Deep-Dive with AI

DocumentsCE Declaration of Conformity H12WD4825PGH | Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H12WD4825PGH

Approval Agency	VDE, cURus, CSA, CE
Load Current	25 A
Mounting Type	Chassis Mount
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-40 C
Output Type	AC, Zero Cross
Package / Case	Hockey Puck
Termination Style	Screw Terminal
Voltage - Input [Max]	32 VDC
Voltage - Input [Min]	4 V
Voltage - Load [Max]	660 V
Voltage - Load [Min]	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 75.29
	N/A	0	$ 79.05
Mouser	N/A	20	$ 78.94
		60	$ 75.35
		100	$ 73.13

Description

General part information

H12WD48 Series

Solid State SPST-NO (1 Form A) Hockey Puck

Documents

Technical documentation and resources

CE Declaration of Conformity

Related Document

H12WD4825PGH | Datasheet

H12WD48 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Package / Case	Termination Style	Approval Agency	Voltage - Load [Max]	Voltage - Load [Min]	Termination Style
Sensata-Crydom H12WD4825P	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	25 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD48125PG	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	125 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD4850FP-10	80 °C	-40 C	AC	Chassis Mount	32 VDC	4 V	50 A	Hockey Puck	Quick Connect	CE CSA cURus VDE	660 V	48 V	0.187 in 0.25 in
Sensata-Crydom H12WD4825G	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	25 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD4875G	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	75 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V

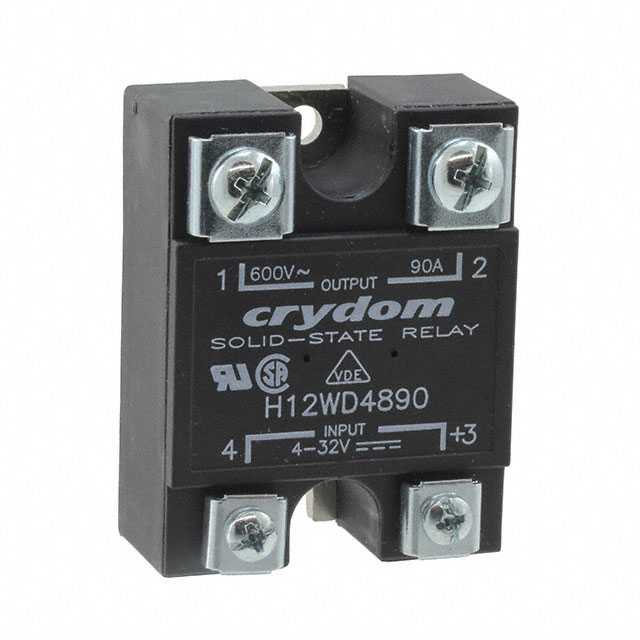

Sensata-Crydom H12WD4890K	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	90 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	600 V	48 V
Sensata-Crydom H12WD4850G	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	50 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD4825PGH	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	25 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD48125	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	125 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD48125PG-10	80 °C	-40 C	AC	Chassis Mount	32 VDC	4 V	125 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
