H12WD48 Series

Catalog

SSR RELAY SPST-NO 25A 48-660V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Package / Case	Termination Style	Approval Agency	Voltage - Load [Max]	Voltage - Load [Min]	Termination Style
Sensata-Crydom H12WD4825P	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	25 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD48125PG	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	125 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD4850FP-10	80 °C	-40 C	AC	Chassis Mount	32 VDC	4 V	50 A	Hockey Puck	Quick Connect	CE CSA cURus VDE	660 V	48 V	0.187 in 0.25 in

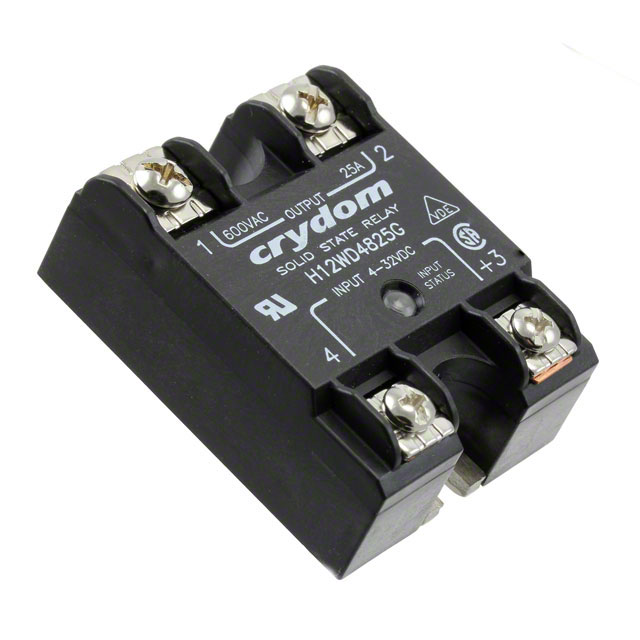

Sensata-Crydom H12WD4825G	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	25 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD4875G	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	75 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V

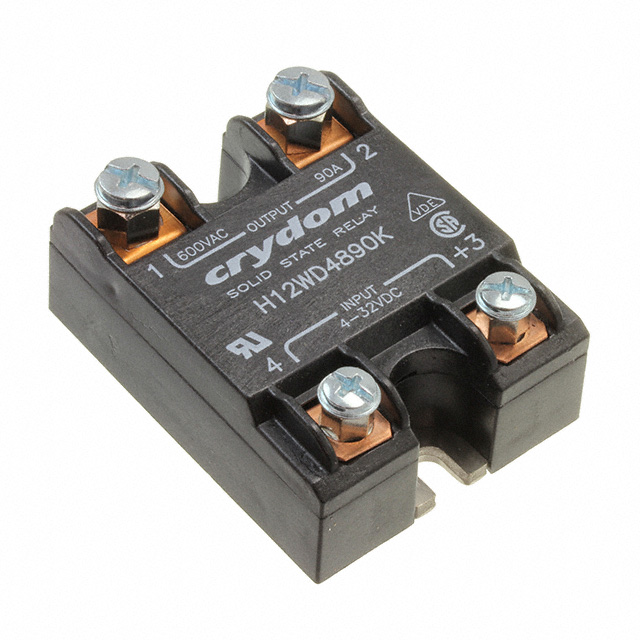

Sensata-Crydom H12WD4890K	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	90 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	600 V	48 V
Sensata-Crydom H12WD4850G	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	50 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD4825PGH	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	25 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD48125	80 °C	-40 C	AC Zero Cross	Chassis Mount	32 VDC	4 V	125 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
Sensata-Crydom H12WD48125PG-10	80 °C	-40 C	AC	Chassis Mount	32 VDC	4 V	125 A	Hockey Puck	Screw Terminal	CE CSA cURus VDE	660 V	48 V
