Power Supplies - External/Internal (Off-Board)

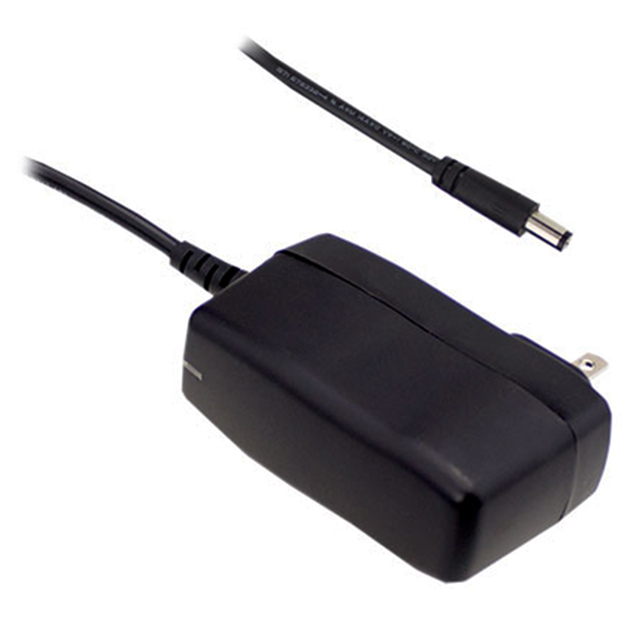

SGA60U07-P1J
ObsoleteMEAN WELL USA Inc.
AC/DC WALL MNT ADAPTER 7.5V 45W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Power Supplies - External/Internal (Off-Board)
SGA60U07-P1J
ObsoleteMEAN WELL USA Inc.
AC/DC WALL MNT ADAPTER 7.5V 45W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SGA60U07-P1J |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CB |
| Cord Length | 1 m |
| Cord Length | 39.4 in |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | Level VI |
| Form | Wall Mount |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 75 mW |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 ░C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 45 W |
| Region Utilized | North America |
| Size / Dimension [x] | 3.68 " |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [y] | 1.38 in |
| Size / Dimension [z] | 51.5 mm |
| Size / Dimension [z] | 2.03 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 27.79 | |
| N/A | 21 | $ 27.79 | ||
Description
General part information
SGA60U07 Series
7.5V 45 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
