SGA60U07 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

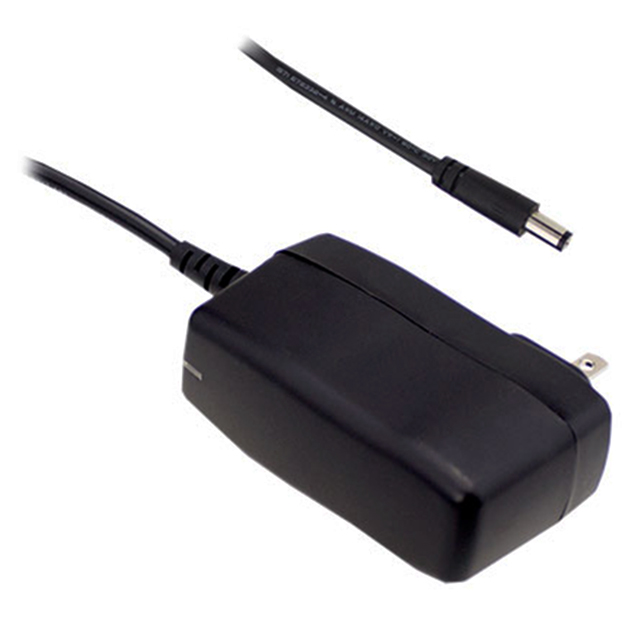

AC/DC WALL MNT ADAPTER 7.5V 45W
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Output Connector [x] | Output Connector [diameter] | Output Connector | Form | Applications | No Load Power Consumption | Input Type | Cord Length | Cord Length | Voltage - Output | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Polarization | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Region Utilized | Efficiency | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 35 mm | 3.68 " | 51.5 mm | 1.38 in | 93.5 mm | 2.03 in | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | Wall Mount | ITE (Commercial) | 75 mW | Fixed Blade | 1 m | 39.4 in | 7.5 V | 45 W | -20 ░C | 50 °C | 6 A | Positive Center | 264 VAC | 90 VAC | CB cULus | North America | Level VI | NEMA 1-15P |
