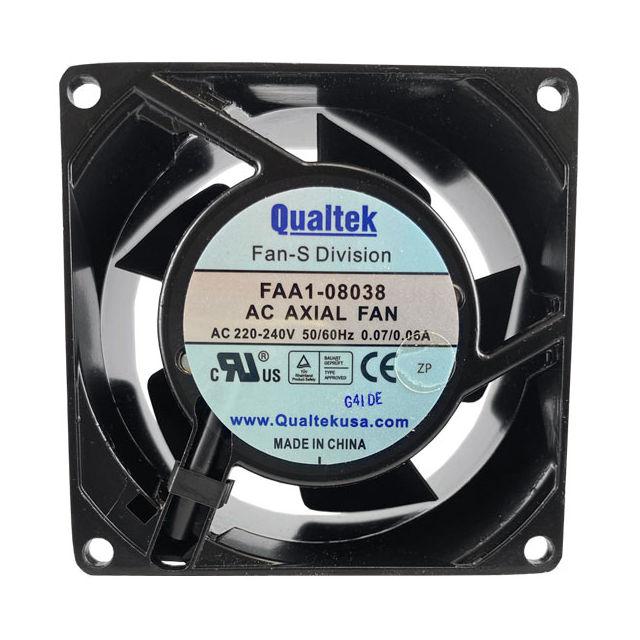

FAA1-08038NBHT31

Active

FAN AXIAL 80X38MM 115VAC TERM

Search across all available documentation for this part.

Fans, Blowers, Thermal Management

Active

FAN AXIAL 80X38MM 115VAC TERM

Technical Specifications

Parameters and characteristics for this part

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Approval Agency	RPM	Weight	Weight	Fan Type	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Termination	Noise	Power (Watts)	Static Pressure	Static Pressure	Bearing Type	Width [y]	Termination
Qualtek FAA1-08038NBHW31	Aluminum	Plastic	100 mA	CE cURus TUV	2800 RPM	0.706 lb	320.24 g	Tubeaxial	115 VAC	80 mm	80 mm	70 °C	-10 °C	0.829 m³/min	29.6 CFM	2 Wire Leads	31.6 dB(A)	8.5 W	41.3 Pa	0.166 in H2O	Ball	38 mm
Qualtek FAA1-08038NBMT31				CE cURus TUV	2400 RPM	0.706 lb	320.24 g	Tubeaxial	115 VAC	80 mm	80 mm	70 °C	-10 °C	0.672 mł/min	24 CFM		26.2 dB(A)		27.4 Pa	0.11 in H2O	Ball	38 mm	2
Qualtek FAA1-08038NBHT31	Aluminum	Plastic	100 mA	CE cURus TUV	2800 RPM	0.706 lb	320.24 g	Tubeaxial	115 VAC	80 mm	80 mm	70 °C	-10 °C	0.829 m³/min	29.6 CFM		31.6 dB(A)	8.5 W	41.3 Pa	0.166 in H2O	Ball	38 mm	2
Qualtek FAA1-08038NHHW31	Aluminum	Plastic	100 mA	CE cURus TUV	2800 RPM	0.706 lb	320.24 g	Tubeaxial	115 VAC	80 mm	80 mm	70 °C	-10 °C	0.829 m³/min	29.6 CFM	2 Wire Leads	31.6 dB(A)	8.5 W	41.3 Pa	0.166 in H2O	Hydrodynamic	38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 29.6 CFM (0.829mł/min) 2 Terminals
