FAA1-08038 Series

Manufacturer: Qualtek

Catalog

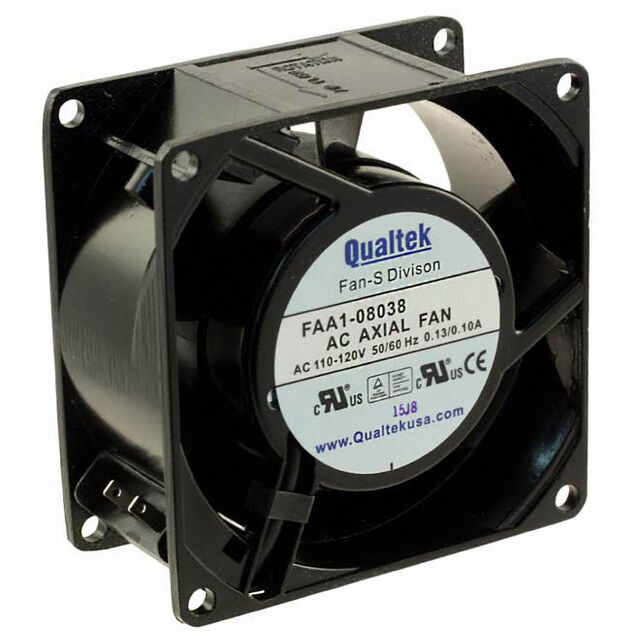

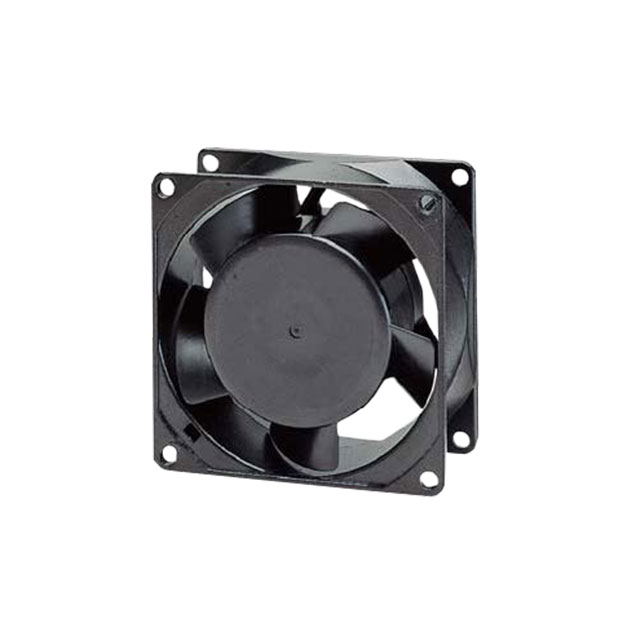

AC FANS AC FAN 80X38MM BALL 115VAC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Approval Agency	RPM	Weight	Weight	Fan Type	Voltage - Rated	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Termination	Noise	Power (Watts)	Static Pressure	Static Pressure	Bearing Type	Width [y]	Termination
Qualtek FAA1-08038NBHW31	Aluminum	Plastic	100 mA	CE cURus TUV	2800 RPM	0.706 lb	320.24 g	Tubeaxial	115 VAC	80 mm	80 mm	70 °C	-10 °C	0.829 m³/min	29.6 CFM	2 Wire Leads	31.6 dB(A)	8.5 W	41.3 Pa	0.166 in H2O	Ball	38 mm
Qualtek FAA1-08038NBMT31				CE cURus TUV	2400 RPM	0.706 lb	320.24 g	Tubeaxial	115 VAC	80 mm	80 mm	70 °C	-10 °C	0.672 mł/min	24 CFM		26.2 dB(A)		27.4 Pa	0.11 in H2O	Ball	38 mm	2
Qualtek FAA1-08038NBHT31	Aluminum	Plastic	100 mA	CE cURus TUV	2800 RPM	0.706 lb	320.24 g	Tubeaxial	115 VAC	80 mm	80 mm	70 °C	-10 °C	0.829 m³/min	29.6 CFM		31.6 dB(A)	8.5 W	41.3 Pa	0.166 in H2O	Ball	38 mm	2
Qualtek FAA1-08038NHHW31	Aluminum	Plastic	100 mA	CE cURus TUV	2800 RPM	0.706 lb	320.24 g	Tubeaxial	115 VAC	80 mm	80 mm	70 °C	-10 °C	0.829 m³/min	29.6 CFM	2 Wire Leads	31.6 dB(A)	8.5 W	41.3 Pa	0.166 in H2O	Hydrodynamic	38 mm
