Specification	M80-5000000M1-04-331-00-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.25 µm
Contact Finish Thickness - Mating	10 µin
Contact Length - Post	0.138 in
Contact Length - Post	3.5 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin, Power
Current Rating (Amps)	20 A
Fastening Type	Threaded
Features	Mating Flange, Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	9.75 mm, 7.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Pitch - Mating	4 mm
Pitch - Mating	0.157 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	800 V

M80-5000000M1 Series

Part	Mated Stacking Heights	Voltage Rating	Number of Rows	Termination	Fastening Type	Contact Finish - Mating	Contact Shape	Insulation Material	Connector Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Positions Loaded	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Number of Positions	Contact Type	Style	Insulation Color	Features	Shrouding

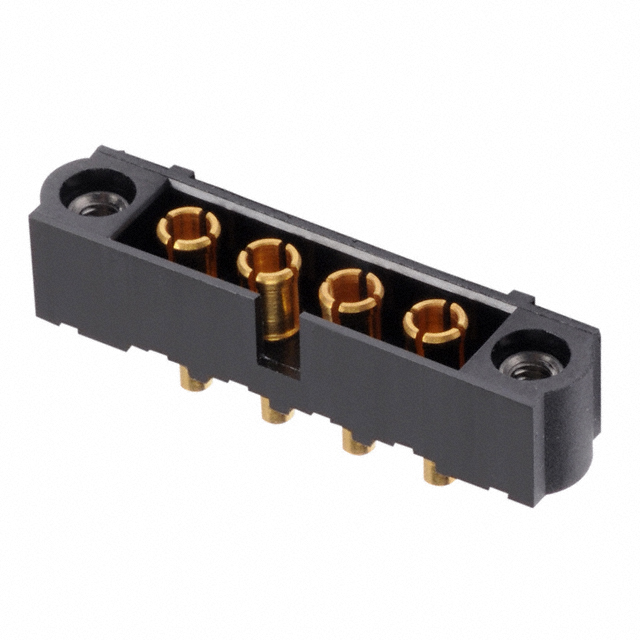

Harwin Inc. M80-5000000M1-04-331-00-000	7.3 mm 9.75 mm	800 V	1	Solder	Threaded	Gold	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Header	5.6 mm	0.22 in	4 mm	0.157 in	Through Hole	-55 C	125 °C	0.25 µm	10 µin	Copper Alloy	All	UL94 V-0	0.138 in	3.5 mm	20 A	4	Male Pin Power	Board to Cable/Wire	Black	Keying Slot Mating Flange	Shrouded - 4 Wall
Harwin Inc. M80-5000000M1-08-PM1-00-000	7.3 mm 9.75 mm	800 V	1	Solder	Threaded	Gold	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Header	5.6 mm	0.22 in	4 mm	0.157 in	Through Hole	-55 C	125 °C	0.76 Ám	30 Áin	Copper Alloy	All	UL94 V-0	0.138 in	3.5 mm	40 A	8	Male Pin Power	Board to Cable/Wire	Black	Keying Slot Mating Flange	Shrouded - 4 Wall
Harwin Inc. M80-5000000M1-06-PM1-00-000	7.3 mm 9.75 mm	800 V	1	Solder	Threaded	Gold	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Header	5.6 mm	0.22 in	4 mm	0.157 in	Through Hole	-55 C	125 °C	0.76 Ám	30 Áin	Copper Alloy	All	UL94 V-0	0.138 in	3.5 mm	40 A	6	Male Pin Power	Board to Cable/Wire	Black	Keying Slot Mating Flange	Shrouded - 4 Wall

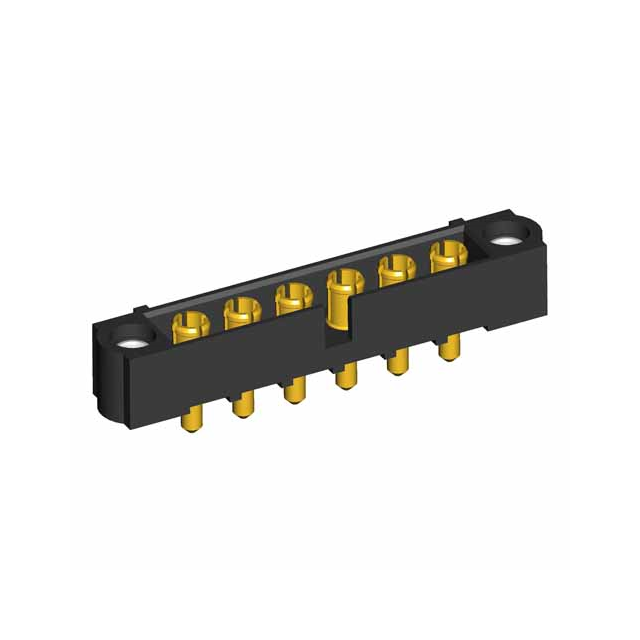

Harwin Inc. M80-5000000M1-06-331-00-000	7.3 mm 9.75 mm	800 V	1	Solder	Threaded	Gold	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Header	5.6 mm	0.22 in	4 mm	0.157 in	Through Hole	-55 C	125 °C	0.25 µm	10 µin	Copper Alloy	All	UL94 V-0	0.138 in	3.5 mm	20 A	6	Male Pin Power	Board to Cable/Wire	Black	Keying Slot Mating Flange	Shrouded - 4 Wall

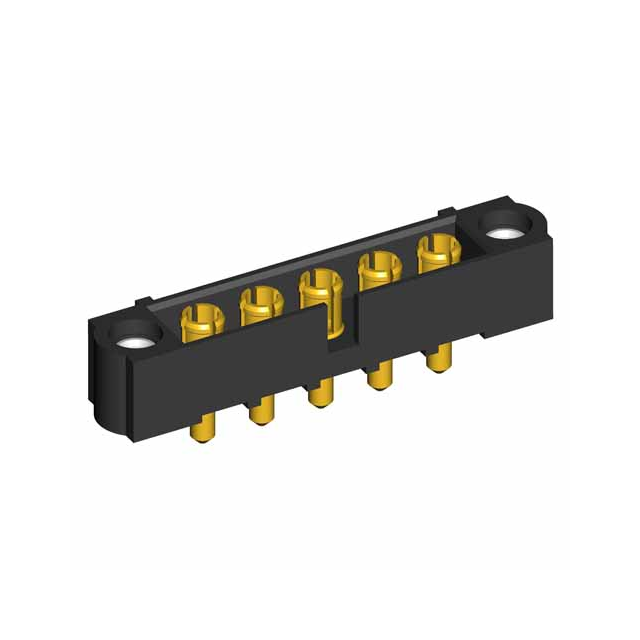

Harwin Inc. M80-5000000M1-05-331-00-000	7.3 mm 9.75 mm	800 V	1	Solder	Threaded	Gold	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Header	5.6 mm	0.22 in	4 mm	0.157 in	Through Hole	-55 C	125 °C	0.25 µm	10 µin	Copper Alloy	All	UL94 V-0	0.138 in	3.5 mm	20 A	5	Male Pin Power	Board to Cable/Wire	Black	Keying Slot Mating Flange	Shrouded - 4 Wall

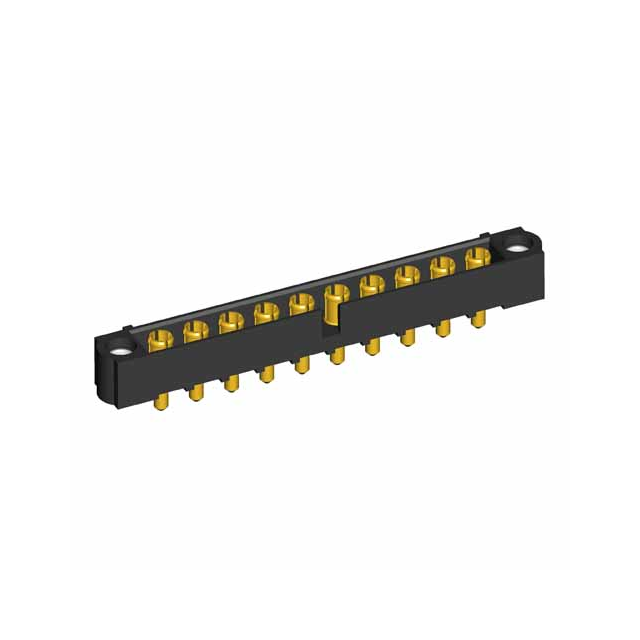

Harwin Inc. M80-5000000M1-10-331-00-000	7.3 mm 9.75 mm	800 V	1	Solder	Threaded	Gold	Circular	Polyphenylene Sulfide (PPS) Glass Filled	Header	5.6 mm	0.22 in	4 mm	0.157 in	Through Hole	-55 C	125 °C	0.25 µm	10 µin	Copper Alloy	All	UL94 V-0	0.138 in	3.5 mm	20 A	10	Male Pin Power	Board to Cable/Wire	Black	Keying Slot Mating Flange	Shrouded - 4 Wall
