Analog Devices-PD60-3-1160-CANOPEN Stepper Motors Stepper Motors Hybrid Bipolar Square 48V 2.8A 2.1 1.8° 1Shaft
Motors, Actuators, Solenoids and Drivers

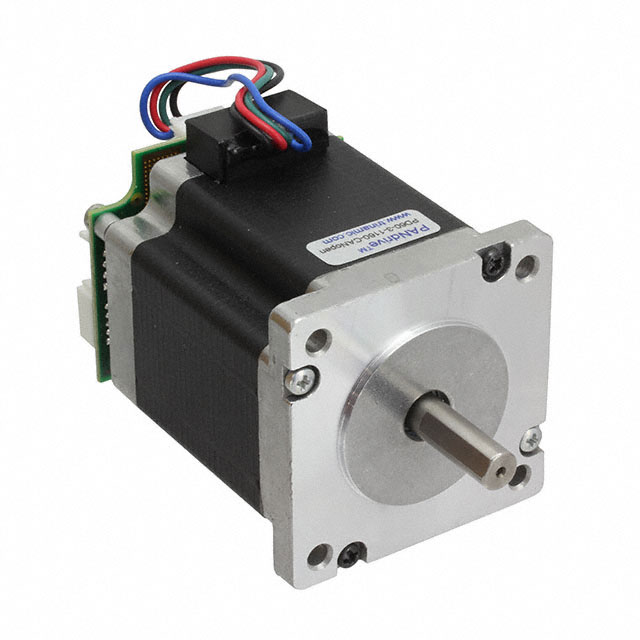

PD60-3-1160-CANOPEN

Active
Analog Devices Inc./Maxim Integrated

NEMA 23 SMART STEPPER MOTOR 9 TO 51V, 55NCM, 256 ΜSTEPS, WITH USB, S/D, CAN AND RS485 INTERFACE, SENSOSTEP, STALLGUARD2 AND COOLSTEP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPd 1160 Tmcl Firmware Manual Fw1.47 (Rev.1.10)Pd 1160 Tmcl Firmware Manual Fw1.46 (Rev.1.09)+3
Analog Devices-PD60-3-1160-CANOPEN Stepper Motors Stepper Motors Hybrid Bipolar Square 48V 2.8A 2.1 1.8° 1Shaft
Motors, Actuators, Solenoids and Drivers

PD60-3-1160-CANOPEN

Active
Analog Devices Inc./Maxim Integrated

NEMA 23 SMART STEPPER MOTOR 9 TO 51V, 55NCM, 256 ΜSTEPS, WITH USB, S/D, CAN AND RS485 INTERFACE, SENSOSTEP, STALLGUARD2 AND COOLSTEP

Deep-Dive with AI

DocumentsPd 1160 Tmcl Firmware Manual Fw1.47 (Rev.1.10)Pd 1160 Tmcl Firmware Manual Fw1.46 (Rev.1.09)+3

Technical Specifications

Parameters and characteristics for this part

SpecificationPD60-3-1160-CANOPEN
Coil TypeBipolar
Current Rating (Amps)2.8 A
Diameter - Shaft [diameter]0.315 in
Diameter - Shaft [diameter]8 mm
FeaturesIntegrated Controller, Flatted Shaft
Length - Shaft and Bearing [x]24 mm
Length - Shaft and Bearing [x]0.945 "
Mounting Hole Spacing [custom]1.856 in
Mounting Hole Spacing [custom]47.14 mm
NEMA Frame Size24
Size / Dimension [x]2.362 in
Size / Dimension [x]60 mm
Size / Dimension [y]60 mm
Size / Dimension [y]2.362 in
Step Angle1.8 °
Steps per Revolution200
Torque - Holding (oz-in / mNm)2100 mNm
Torque - Holding (oz-in / mNm)297.38 oz-in
TypeHybrid
Voltage - Rated48 VDC

PD-1160 Series

PartLength - Shaft and Bearing [x]Length - Shaft and Bearing [x]Steps per RevolutionNEMA Frame SizeStep AngleCurrent Rating (Amps)Mounting Hole Spacing [custom]Mounting Hole Spacing [custom]FeaturesSize / Dimension [x]Size / Dimension [x]Size / Dimension [y]Size / Dimension [y]TypeVoltage - RatedTorque - Holding (oz-in / mNm)Torque - Holding (oz-in / mNm)Coil TypeDiameter - Shaft [diameter]Diameter - Shaft [diameter]NEMA Frame Size

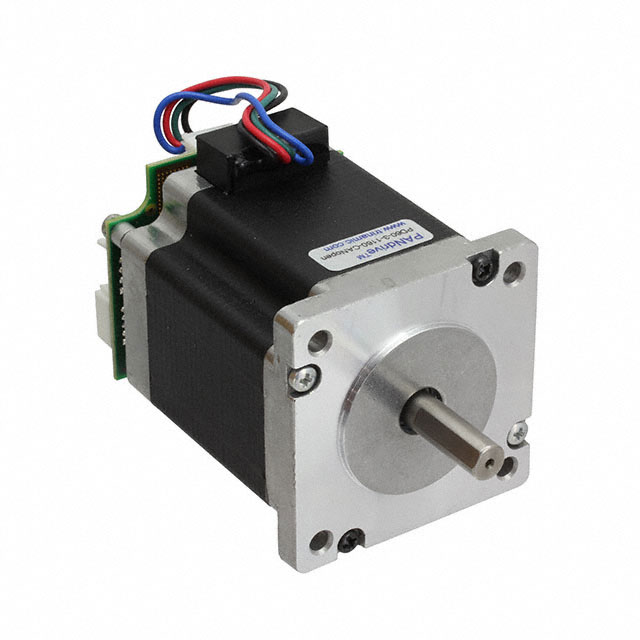

PD60-3-1160-TMCL
Analog Devices Inc./Maxim Integrated
PD60-3-1160-TMCL
24 mm
0.945 "
200
24
1.8 °
2.8 A
1.856 in
47.14 mm
Flatted Shaft
Integrated Controller
2.362 in
60 mm
60 mm
2.362 in
Hybrid
48 VDC
2100 mNm
297.38 oz-in
Bipolar
0.315 in
8 mm
Analog Devices-PD60-3-1160-CANOPEN Stepper Motors Stepper Motors Hybrid Bipolar Square 48V 2.8A 2.1 1.8° 1Shaft
Analog Devices Inc./Maxim Integrated
PD60-3-1160-CANOPEN
24 mm
0.945 "
200
24
1.8 °
2.8 A
1.856 in
47.14 mm
Flatted Shaft
Integrated Controller
2.362 in
60 mm
60 mm
2.362 in
Hybrid
48 VDC
2100 mNm
297.38 oz-in
Bipolar
0.315 in
8 mm
Analog Devices-PD57-2-1160-CANOPEN Stepper Motors Stepper Motors Hybrid Bipolar Square 48V 2.8A 1.01 1.8° 1Shaft
Analog Devices Inc./Maxim Integrated
PD57-2-1160-CANOPEN
24 mm
0.945 "
200
24
1.8 °
2.8 A
1.856 in
47.14 mm
Flatted Shaft
Integrated Controller
2.362 in
60 mm
60 mm
2.362 in
Hybrid
48 VDC
1010 mNm
143.05 oz-in
Bipolar
0.25 in
6.35 mm
PD57-2-1160-TMCL
Analog Devices Inc./Maxim Integrated
PD57-2-1160-TMCL
24 mm
0.945 "
200
24
1.8 °
2.8 A
1.856 in
47.14 mm
Flatted Shaft
Integrated Controller
2.362 in
60 mm
60 mm
2.362 in
Hybrid
48 VDC
1010 mNm
143.05 oz-in
Bipolar
0.25 in
6.35 mm
PD57-1-1160-TMCL
Analog Devices Inc./Maxim Integrated
PD57-1-1160-TMCL
24 mm
0.945 "
200
1.8 °
2.8 A
1.856 in
47.14 mm
Flatted Shaft
Integrated Controller
2.362 in
60 mm
60 mm
2.362 in
Hybrid
48 VDC
550 mNm
77.89 oz-in
Bipolar
0.25 in
6.35 mm
23

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCase 1$ 332.71
N/A 0$ 329.71

Description

General part information

PD-1160 Series

The PD57-1160 and PD60-1160 PANdrive™familly is a full mechatronic solution including a high torque stepper motor and a motion controller/driver using the new outstanding CoolStep™technology for sensorless load dependent current control. This allows the first time an energy efficient operation of an open-loop stepper motor system. With the advanced StallGuard2™feature the load of the motor can be detected with high resolution.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDE
