PD57-2 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

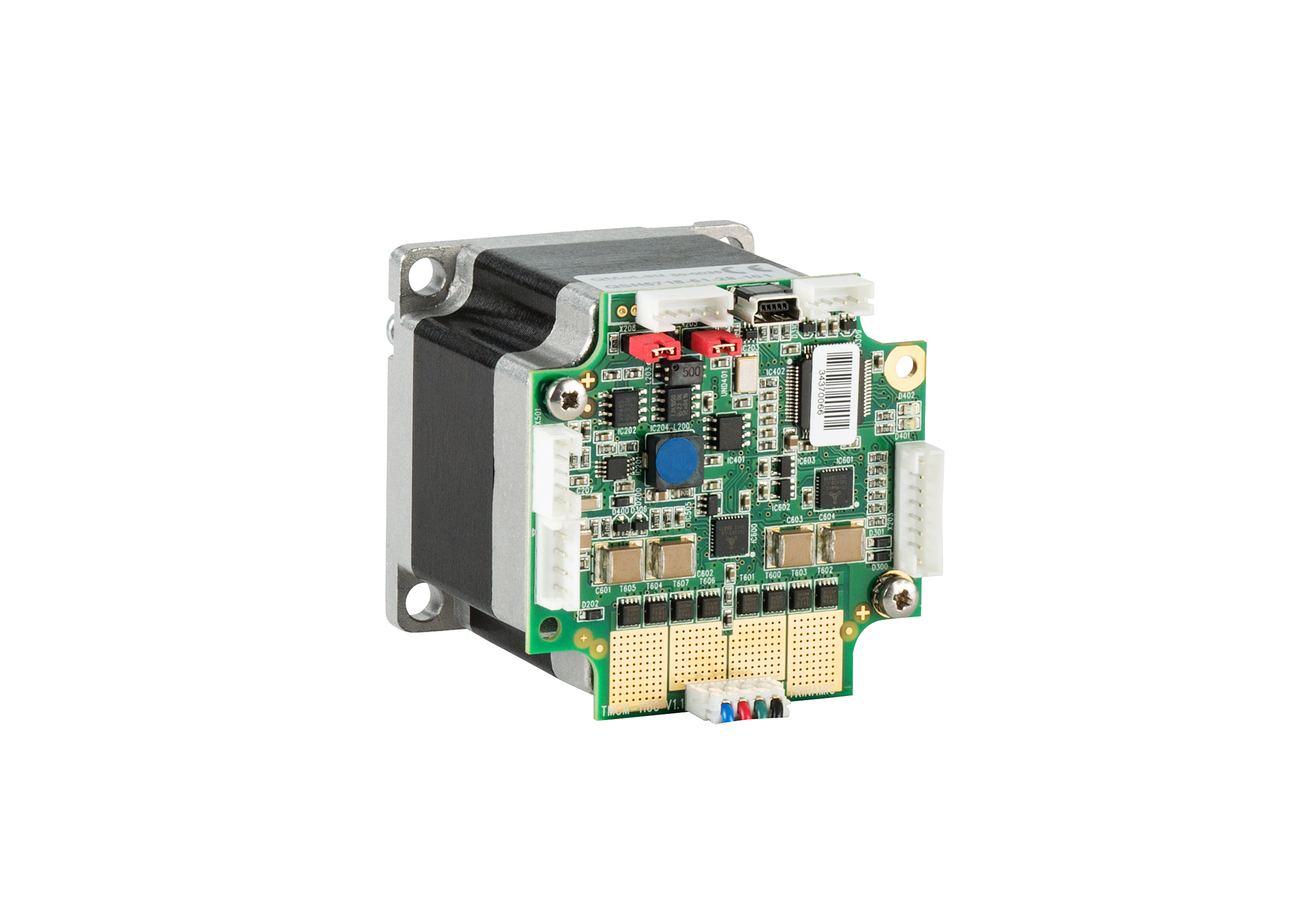

PANDRIVE NEMA23, 48V, 1.01NM

Part	NEMA Frame Size	Current Rating (Amps)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Steps per Revolution	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Coil Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Rotor Inertia	Mounting Hole Spacing	Mounting Hole Spacing	Voltage - Rated	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Features	Step Angle	Coil Resistance	Step Angle	Accuracy	Voltage - Rated [custom]
Analog Devices Inc./Maxim Integrated PD57-2-1260-CANOPEN	24	2.8 A	Hybrid	50 °C	-20 C	24 mm	0.945 in	200	2.362 in	2.362 in	60 mm	60 mm	Bipolar	0.25 in	6.35 mm	275 gcm˛	47.14 mm	1.856 in	2.3 V	143.03 oz-in	1010 mNm	Flatted Shaft Integrated Controller	1.8 °
Analog Devices Inc./Maxim Integrated PD57-2-1378-CANOPEN	23	2.8 A	Hybrid	50 °C	-20 C			200	2.362 in	2.362 in	60 mm	60 mm	Bipolar			275 gcm˛			2.3 V	143.03 oz-in	1010 mNm	Flatted Shaft Integrated Controller	1.8 °	0.8 Ohms
Analog Devices Inc./Maxim Integrated PD57-2-1161	24	2.8 A	Hybrid			24 mm	0.945 in	200	2.362 in	2.362 in	60 mm	60 mm	Bipolar	0.25 in	6.35 mm		47.14 mm	1.856 in	24 VDC	143.05 oz-in	1010 mNm	Flatted Shaft Integrated Controller	1.8 °
Analog Devices Inc./Maxim Integrated PD57-2-1276-TMCL	23	2.8 A	Hybrid	50 °C	-20 C			200	2.362 in	2.362 in	60 mm	60 mm	Bipolar			275 gcm˛			2.3 V	143.03 oz-in	1010 mNm	Flatted Shaft Integrated Controller	1.8 °	0.8 Ohms
Analog Devices Inc./Maxim Integrated PD57-2-1276-CANOPEN	23	2.8 A	Hybrid	50 °C	-20 C			200	2.362 in	2.362 in	60 mm	60 mm	Bipolar			275 gcm˛			2.3 V	143.03 oz-in	1010 mNm	Flatted Shaft Integrated Controller		0.8 Ohms	1.8¯	Ý5%
Analog Devices Inc./Maxim Integrated PD57-2-1160-TMCL	24	2.8 A	Hybrid			24 mm	0.945 in	200	2.362 in	2.362 in	60 mm	60 mm	Bipolar	0.25 in	6.35 mm		47.14 mm	1.856 in		143.05 oz-in	1010 mNm	Flatted Shaft Integrated Controller	1.8 °				48 VDC
Analog Devices Inc./Maxim Integrated PD57-2-1076	23	2.8 A	Hybrid	50 °C	-20 C			200	2.362 in	2.362 in	60 mm	60 mm	Bipolar			275 gcm˛			2.3 V	143.03 oz-in	1010 mNm	Flatted Shaft Integrated Controller	1.8 °	0.8 Ohms
